• Complete Linear Charge Management Controller- Integrated Pass Transistor- Integrated Current Sense- Integrated Reverse Discharge Protection
|
• Constant Current / Constant Voltage Operation with Thermal Regulation
|
• High Accuracy Preset Voltage Regulation: + 1%
|
• Voltage Regulation: 4.20V
|
|
| CATALOG |
MCP73812T-420I/OT COUNTRY OF ORIGIN
|
MCP73812T-420I/OT PARAMETRIC INFO
|
MCP73812T-420I/OT PACKAGE INFO
|
MCP73812T-420I/OT MANUFACTURING INFO
|
MCP73812T-420I/OT PACKAGING INFO
|
MCP73812T-420I/OT ECAD MODELS
|
MCP73812T-420I/OT APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Type |
Linear Battery Charger Controller |
| Battery Type |
Li-Ion|Li-Pol |
| Output Voltage (V) |
4.2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
3.75 |
| Operating Supply Voltage (V) |
3.75 to 6 |
| Maximum Operating Supply Voltage (V) |
6 |
| Maximum Supply Current (mA) |
1(Typ) |
| Output Current (mA) |
500 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.3(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

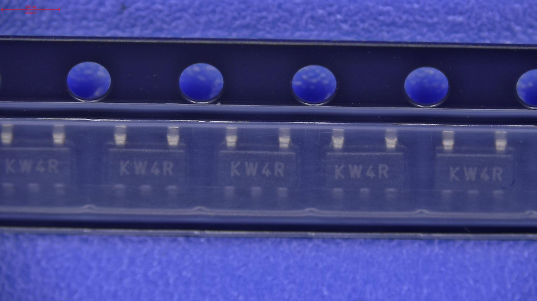

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

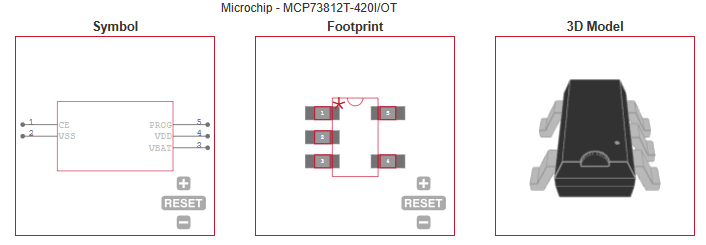

ECAD MODELS
|
|
|
APPLICATIONS
|
• Low-Cost Lithium-Ion/Lithium-Polymer Battery Chargers
|
• Rechargeable Toys
|
• Electronic Cigarettes
|
• Bluetooth Headsets
|
| • USB Chargers |
|
