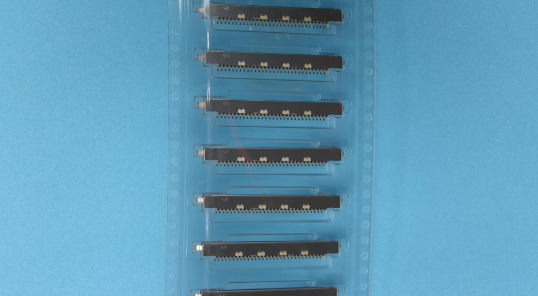

MDF76GW-30S-1H(55) Hirose Connector CONN RCPT 30P 0.039 GOLD SMD R/A

Type	Wire to Board
Gender	RCP
Number of Contacts	30
Termination Method	Solder
Maximum Current Rating (A)	1
Maximum Voltage Rating	200VAC
Housing Material	Polyamide
Housing Color	Beige
Contact Material	Phosphor Bronze
Contact Plating	Gold Over Nickel
Number of Rows	1
Maximum Contact Resistance (mOhm)	40
Insulation Resistance (MOhm)	100
Operating Temperature (°C)	-40 to 85
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Mating Cycle (Cycles)	50
Maximum Terminal Width (mm)	0.45
Maximum Terminal Coplanarity (mm)	0.1
Minimum Storage Temperature (°C)	-10
Maximum Storage Temperature (°C)	60
Contact Plating Thickness	(0.1/2)um
Terminal Plating Thickness	(0.03/2)um
Tail Shape	Square

PACKAGE INFO

Terminal Pitch (mm)	1
Body Orientation	Right Angle
Mounting	Surface Mount
Product Length (mm)	40.05
Product Depth (mm)	4.75
Product Height (mm)	2.35
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	±0.15
Height Tolerance (mm)	±0.1
Product Weight (g)	0.64

MANUFACTURING INFO

MSL	N/A
Maximum Reflow Temperature (°C)	255
Reflow Solder Time (Sec)	10
Number of Reflow Cycle	2
Standard	N/A
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	N/A
Under Plating Material	N/A
Terminal Base Material	Phosphor-Bronze
Number of Wave Cycles	N/R

PACKAGING INFO

Packaging	Tape and Reel
Quantity Of Packaging	3000
Reel Diameter (in)	14.96
Reel Width (mm)	56.4
Tape Pitch (mm)	12
Tape Width (mm)	56
Feed Hole Pitch (mm)	4
Hole Center to Component Center (mm)	2
Packaging Document	Link to Datasheet

APPLICATIONS

Notebook computers, desktop computers, Liquid
Crystal Panels, LCD monitors and other devices
requiring discrete wire connections with a lowprofile high performance connectors.
