• High-speed data transfer
|
• EMI protection
|
• Increased Plug / Receptacle retention force
|
• Incorrect insertion prevention
|
• High board retention force
|
|
| CATALOG |
MDF76GW-30S-1H(58) COUNTRY OF ORIGIN
|
MDF76GW-30S-1H(58) LIFECYCLE
|
MDF76GW-30S-1H(58) PARAMETRIC INFO
|
MDF76GW-30S-1H(58) PACKAGE INFO
|
MDF76GW-30S-1H(58) MANUFACTURING INFO
|
MDF76GW-30S-1H(58) PACKAGING INFO
|
MDF76GW-30S-1H(58) APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Japan
|
|
LIFECYCLE
|
Obsolete
Mar 31,2024
|
|
PARAMETRIC INFO
|
| Type |
Wire to Board |
| Gender |
RCP |
| Number of Contacts |
30 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
1 |
| Maximum Voltage Rating |
200VAC |
| Housing Color |
Beige |
| Contact Plating |
Gold |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
50 |
|
|
PACKAGE INFO
|
| Body Orientation |
Right Angle |
| Mounting |
Surface Mount |
| Product Weight (g) |
0.62 |
|
|
MANUFACTURING INFO
|
|
|
| |
| PACKAGING INFO |

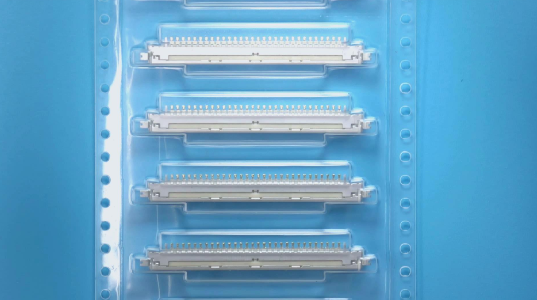

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
| |
| APPLICATIONS |
Notebook computers, desktop computers, Liquid
Crystal Panels, LCD monitors and other devices
requiring discrete wire connections with a lowprofile high performance connectors |
| |
