• Compliant with AEC-Q200 Rev-D Stress Test Qualification for Passive Components in Automotive Applications
|
• 100 % electrically compatible with all previous generations of 1812 SMT devices
|
• Compatible with Pb and Pb-free solder reflow profiles
|
| • RoHS compliant* and halogen free**
|
| • Surface mount packaging for automated assembly |
| • Standard 4532 mm (1812 mils) footprint |
| |
| CATALOG |
| MF-MSMF014-2 COUNTRY OF ORIGIN |
MF-MSMF014-2 PARAMETRIC INFO
|
MF-MSMF014-2 PACKAGE INFO
|
MF-MSMF014-2 MANUFACTURING INFO
|
MF-MSMF014-2 PACKAGING INFO
|
MF-MSMF014-2 EACD MODELS
|
| MF-MSMF014-2 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Trip Current (A) |
0.3 |
| Hold Current (A) |
0.14 |
| Maximum Voltage Rating |
60V |
| Maximum Current Rating (A) |
40 |
| Typical Power Dissipation (W) |
0.8 |
| Minimum Initial Resistance (Ohm) |
0.4 |
| Maximum Post Trip Resistance (Ohm) |
6.5 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Trip Time (s) |
0.15@1.5A |
| Application |
Hard Disk Drives|PC Motherboards|PC Peripherals |
| Minimum Operating Temperature (°C) |
-20 |
| Maximum Storage Temperature (°C) |
40 |
| Size (mm) |
4.73 X 3.41 X 1.1 |
|
|
PACKAGE INFO
|
| Package/Case |
1812 |
| Number of Terminals |
2 |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
4.73(Max) |
| Product Depth (mm) |
3.41(Max) |
| Product Height (mm) |
1.1(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

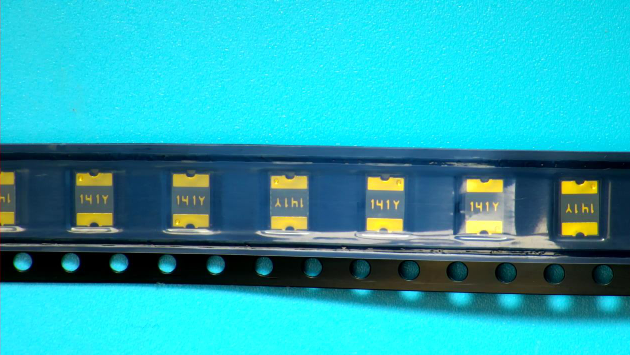

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

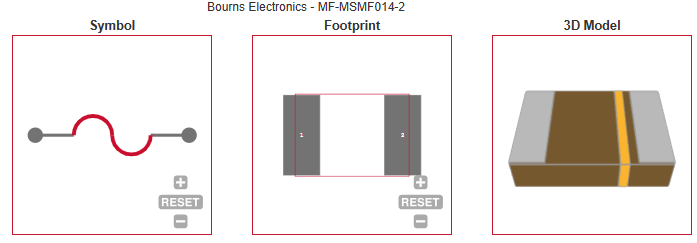

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Overcurrent and overtemperature protection of automotive electronics |
| • Hard disk drives |
| • PC motherboards |
| • PC peripherals |
| • Point-of-sale (POS) equipment |
| • PCMCIA cards |
| • USB port protection - USB 2.0, 3.0 & OTG |
| • HDMI 1.4 Source protection |
| |
