• Compliant with AEC-Q200 Rev-D Stress
Test Qualification for Passive Components
in Automotive Applications
|
• 100 % electrically compatible with all
previous generations of 1812 SMT devices
|
• Compatible with Pb and Pb-free solder
reflow profiles
|
• RoHS compliant* and halogen free**
|
• Surface mount packaging for automated
assembly
|
• Agency recognition
|
• Standard 4532 mm (1812 mils) footprint
|
|
| CATALOG |
| MF-MSMF030-2 COUNTRY OF ORIGIN |
MF-MSMF030-2 PARAMETRIC INFO
|
MF-MSMF030-2 PACKAGE INFO
|
MF-MSMF030-2 MANUFACTURING INFO
|
MF-MSMF030-2 PACKAGING INFO
|
MF-MSMF030-2 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
United States of America
|
Singapore
|
United Kingdom of Great Britain and Northern Ireland
|
|
PARAMETRIC INFO
|
| Trip Current (A) |
0.6 |
| Hold Current (A) |
0.3 |
| Maximum Voltage Rating |
30V |
| Maximum Current Rating (A) |
10 |
| Typical Power Dissipation (W) |
0.8 |
| Minimum Initial Resistance (Ohm) |
0.3 |
| Maximum Post Trip Resistance (Ohm) |
3 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Trip Time (s) |
0.1@8A |
| Application |
Hard Disk Drives|PC Motherboards|PC Peripherals |
| Minimum Operating Temperature (°C) |
-40 |
| Size (mm) |
4.73 X 3.41 X 1.1 |
|
|
PACKAGE INFO
|
| Package/Case |
1812 |
| Number of Terminals |
2 |
| Mounting |
Surface Mount |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
4.73(Max) |
| Product Depth (mm) |
3.41(Max) |
| Product Height (mm) |
1.1(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Termination Style |
Solder Pad |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

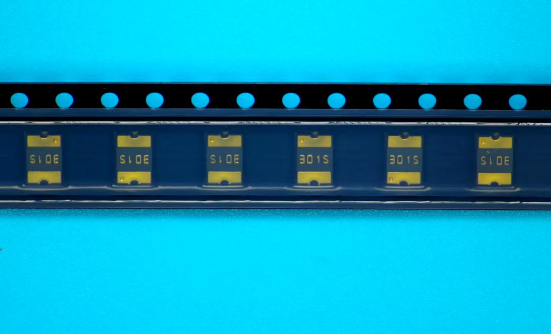

PACKAGING INFO
|
| Packaging Suffix |
2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
|
|
APPLICATIONS
|
• Overcurrent and overtemperature
protection of automotive electronics
|
• Hard disk drives
|
• PC motherboards
|
• PC peripherals
|
• Point-of-sale (POS) equipment
|
• PCMCIA cards
|
• USB port protection - USB 2.0, 3.0 & OTG
|
• HDMI 1.4 Source protection
|
|
