MIC2091-2YM5-TR COUNTRY OF ORIGIN
|
MIC2091-2YM5-TR PARAMETRIC INFO
|
MIC2091-2YM5-TR PACKAGE INFO
|
MIC2091-2YM5-TR MANUFACTURING INFO
|
MIC2091-2YM5-TR PACKAGING INFO
|
MIC2091-2YM5-TR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
High Side |
| Number of Outputs |
1 |
| Maximum Input Voltage (V) |
5.5 |
| Minimum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Input Voltage (V) |
1.8 |
| Maximum Operating Temperature (°C) |
125 |
| Input Type |
Non-Inverting |
| Typical Switch On Resistance (mOhm) |
1300 |
| Interface Type |
On/Off |
| Typical Supply Current (mA) |
0.11 |
| Output Voltage Range (V) |
-0.3 to 6 |
| Operating Supply Voltage Range (VDC) |
1.8 to 5.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Pin Count |
5 |
| PCB |
5 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

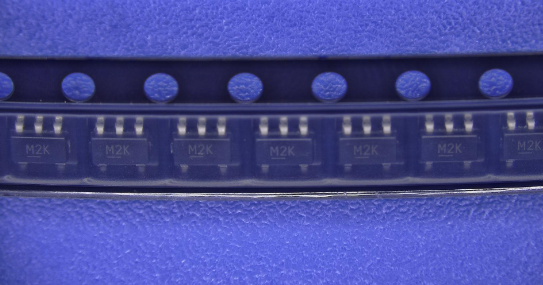

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
|

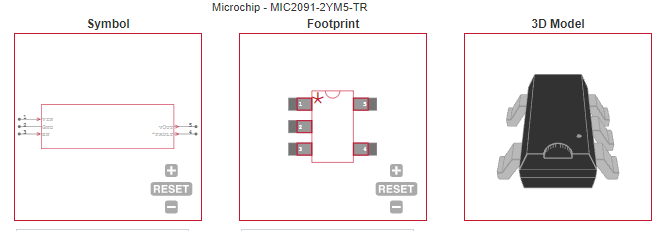

ECAD MODELS
|
|
|
