• Up to 1.5A Flash LED Driving Current
|
• 2.7V to 5.0V Input Voltage Range
|
• Configurable 1 or 2 Channel(s) WLED Driver
|
• High-Efficiency 2 MHz VF Adaptive Boost Driver
|
• LED Driving Current Soft-Start
|
• Control through I2C Interface or External Pins
|
• Flash Inhibit Function for GSM Pulse Synchronization
|
|
| CATALOG |
MIC2870YFT-TR COUNTRY OF ORIGIN
|
MIC2870YFT-TR LIFECYCLE
|
MIC2870YFT-TR PARAMETRIC INFO
|
MIC2870YFT-TR PACKAGE INFO
|
MIC2870YFT-TR MANUFACTURING INFO
|
MIC2870YFT-TR PACKAGING INFO
|
MIC2870YFT-TR ECAD MODELS
|
MIC2870YFT-TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
LIFECYCLE
|
Obsolete
Jan 31,2024
|
|
PARAMETRIC INFO
|
| Number of Digits |
8 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
5 |
| Interface Type |
I2C |
| Output Voltage Range (V) |
5.2(Max) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Supply Voltage Range (V) |
2.7 to 5 |
| Number of LED Outputs |
2 |
|
|
PACKAGE INFO
|
| Supplier Package |
TQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.55(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Description |
Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Matte Sn annealed |
|
|
| PACKAGING INFO |
| Packaging Suffix |
TR |

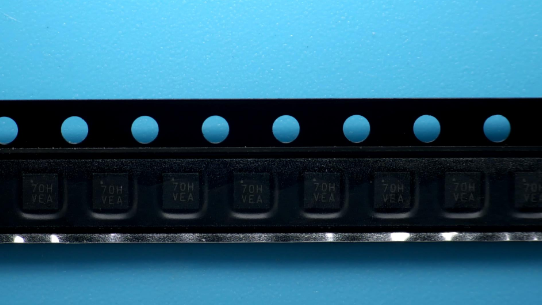

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |

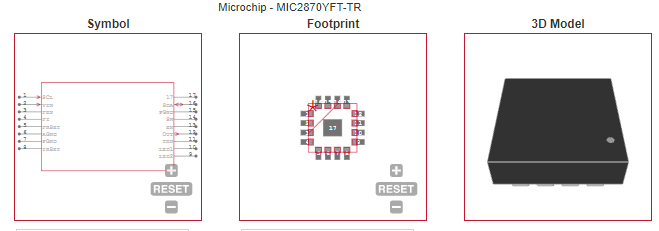

| ECAD MODELS |
 |
| |
| APPLICATIONS |
| • Camera Phones/Mobile Handsets |
| • Cellular Phones/Smartphones |
| • LED Light for Image Capture/Auto-Focus/ White Balance |
| • Handset Video Light (Torch Light) |
| • Digital Cameras |
| • Portable Applications |
| |
