• Up to 95% Efficiency
|
• Input Voltage Range from 2.5V to 5.5V
|
• Fully Integrated, High-Efficiency, 2 MHz
Synchronous Boost Regulator
|
| • Bi-Directional True Load Disconnect |
| • Integrated Anti-Ringing Switch |
| • <1 µA Shutdown Current |
| • Bypass Mode for VIN ≥ VOUT
|
| • Overcurrent Protection and Thermal Shutdown
|
| • Fixed and Adjustable Output Versions |
| • 8-Lead 2 mm × 2 mm UDFN Package |
|
| CATALOG |
MIC2876-AYMT-TR PARAMETRIC INFO
|
MIC2876-AYMT-TR PACKAGE INFO
|
MIC2876-AYMT-TR MANUFACTURING INFO
|
MIC2876-AYMT-TR PACKAGING INFO
|
MIC2876-AYMT-TR ECAD MODELS
|
MIC2876-AYMT-TR APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Up |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
2.5 |
| Maximum Input Voltage (V) |
5.5 |
| Output Voltage (V) |
2.5 to 5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
2000(Typ) |
| Efficiency (%) |
95 |
| Switching Regulator |
Yes |
| Output Type |
Adjustable |
| Load Regulation |
0.2%/A(Typ) |
| Line Regulation |
0.3%/V(Typ) |
| Typical Quiescent Current (uA) |
109 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.8 |
|
|
PACKAGE INFO
|
| Supplier Package |
TDFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.55(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Thin Dual Flat Package No Lead, Exposed Pad |
| Package Family Name |
DFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Matte Sn annealed |
|
|

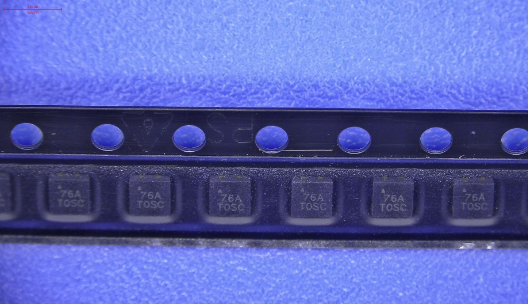

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

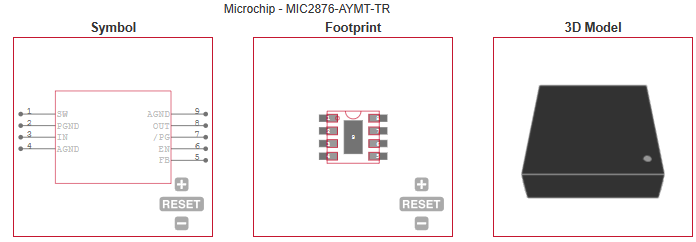

ECAD MODELS
|
|
|
APPLICATIONS
|
• Tablets and Smartphones
|
• USB OTG and HDMI Hosts
|
| • Portable Power Reserve Supplies
|
| • High-Current Parallel Lithium Cell Applications
|
| • Portable Equipment |
|
| |
