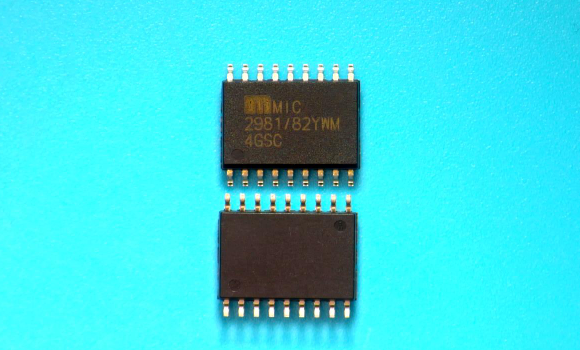

| • Output voltage to 50V |
| • Output current to 500mA |
| • Transient-protected outputs |
| • Integral clamp diodes |
|
| CATALOG |
| MIC2981/82YWM COUNTRY OF ORIGIN |
| MIC2981/82YWM PARAMETRIC INFO |
| MIC2981/82YWM PACKAGE INFO |
| MIC2981/82YWM MANUFACTURING INFO |
| MIC2981/82YWM PACKAGING INFO |

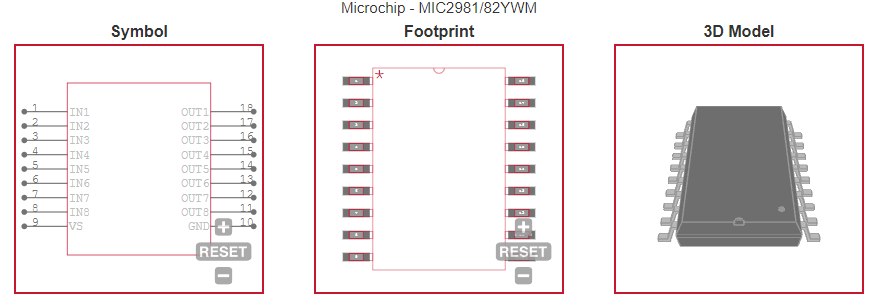

| MIC2981/82YWM ECAD MODELS |

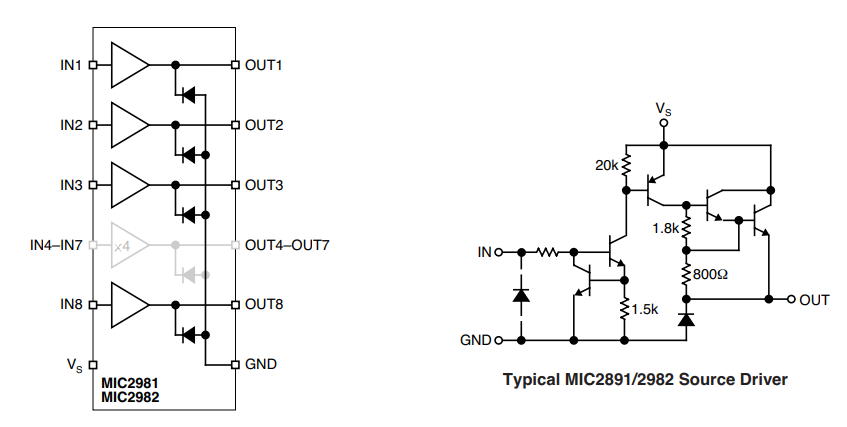

| MIC2981/82YWM FUNCTIONAL BLOCK DIAGRAMS |
| MIC2981/82YWM APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Number of Drivers |
8 |
| Input Logic Compatibility |
CMOS|TTL |
| Maximum Operating Supply Voltage (V) |
50 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Turn-Off Delay Time (ns) |
2000 |
| Maximum Turn-On Delay Time (ns) |
10000 |
| Number of Outputs |
8 |
| Minimum Operating Supply Voltage (V) |
5 |
| Maximum Supply Current (mA) |
10 |
| Latch-Up Proof |
No |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
| PACKAGE INFO |
| Supplier Package |
SOP W |
| Pin Count |
18 |
| PCB |
18 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
11.66(Max) |
| Package Width (mm) |
7.65(Max) |
| Package Height (mm) |
2.39(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
|
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
41 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|
| FUNCTIONAL BLOCK DIAGRAMS |
 |
|
| APPLICATIONS |
| • Relay and solenoid switching |
| • Stepping motor |
| • LED and incandescent displays |
| |
|
