CATALOG
|
MIC4724YMME COUNTRY OF ORIGIN
|
MIC4724YMME LIFECYCLE
|
MIC4724YMME PARAMETRIC INFO
|
MIC4724YMME PACKAGE INFO
|
| MIC4724YMME MANUFACTURING INFO |
MIC4724YMME PACKAGING INFO
|
MIC4724YMME ECAD MODELS
|
MIC4724YMME APPLICATION
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Thailand
|
|
LIFECYCLE
|
Obsolete
Jun 26,2023
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
6 |
| Output Voltage (V) |
0.98 to 1.02 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
2000(Typ) |
| Efficiency (%) |
94 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
3 to 6 |
| Output Type |
Adjustable |
| Load Regulation |
0.2%(Typ) |
| Line Regulation |
0.07%(Typ) |
| Typical Quiescent Current (uA) |
570 |
|
|
PACKAGE INFO
|
| Supplier Package |
MSOP EP |
| Pin Count |
10 |
| PCB |
10 |
| Tab |
N/R |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.86 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| |
PACKAGING INFO
|
|
|
|

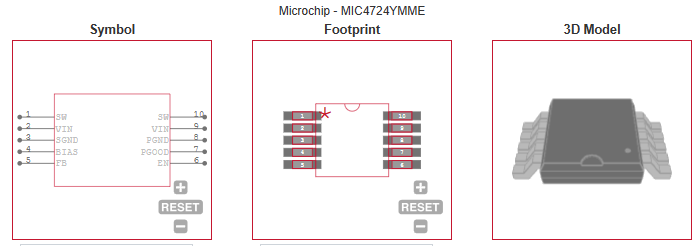

ECAD MODELS
|
|
|
| APPLICATION |
• FPGA/DSP/ASIC applications
|
• General point of load
|
• Broadband communications
|
• DVD/TV recorders
|
• Point of sale
|
• Printers/Scanners
|
• Set top boxes
|
• Computing peripherals
|
• Video cards
|
| |
