| • 1.8V to 5.5V DC input voltage |
| • 160VPP regulated AC output waveform |
| • Independently adjustable EL lamp frequency |
| • Independently adjustable boost converter frequency |
| • 0.1µA shutdown current
|
|
| CATALOG |
| MIC4826YMM COUNTRY OF ORIGIN |
| MIC4826YMM PARAMETRIC INFO |
| MIC4826YMM PACKAGE INFO |
| MIC4826YMM MANUFACTURING INFO |
| MIC4826YMM PACKAGING INFO |

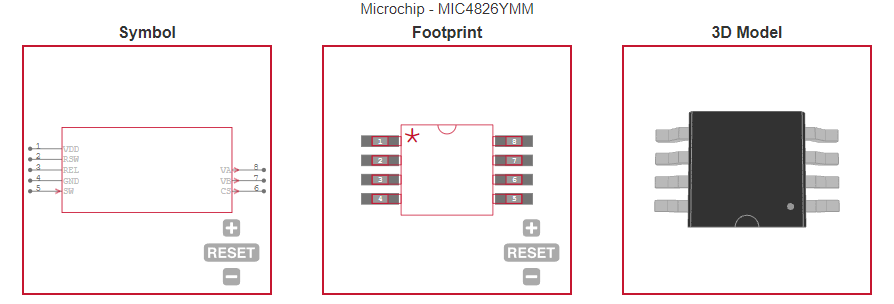

| MIC4826YMM ECAD MODELS |

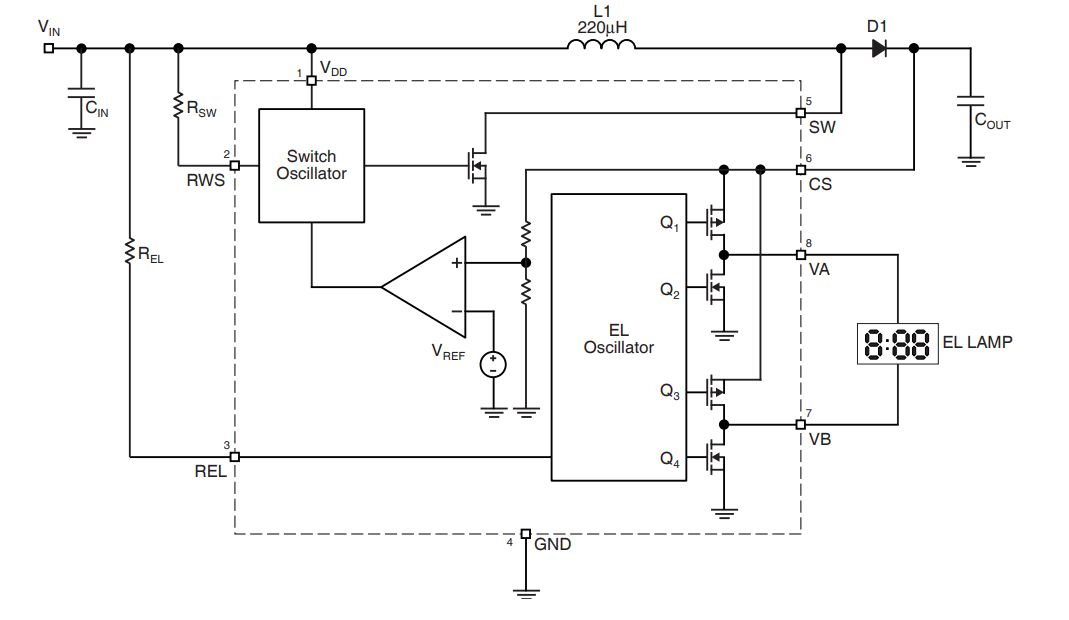

| MIC4826YMM FUNCTIONAL BLOCK DIAGRAM |
| MIC4826YMM APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
|
| PARAMETRIC INFO |
| Driver Type |
EL Lamp |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|

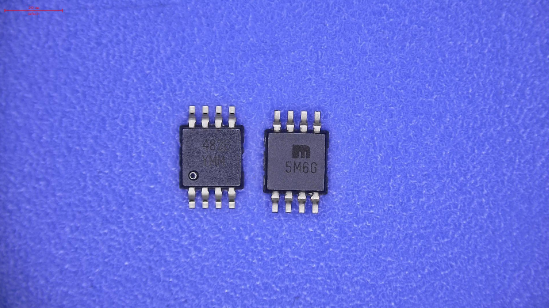

| |
| PACKAGE INFO |
| Supplier Package |
MSOP |
| Pin Count |
8 |
| PCB |
8 |
| Tab |
N/R |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.92 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
|
|
| |
| ECAD MODELS |
 |
|
| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • LCD panel backlight |
| • Cellular phones |
| • PDAs |
| • Pagers |
| • Calculators |
| • Remote controls |
| • Portable phones |
|
