• Input Voltage Range: 2.5V to 5.5V
|
• Fixed Output Voltages from 1.0V to 3.3V
|
• 300 mA Ensured Output Current
|
• High Output Accuracy (±2%)
|
• Low Quiescent Current: 38 µA
|
• Stable with 1 µF Ceramic Output Capacitors
|
• Low Dropout Voltage: 160 mV @ 300 mA
|
• Output Discharge Circuit: MIC5502, MIC5504
|
• Internal Enable Pull-Down: MIC5503, MIC5504
|
• Thermal-Shutdown and Current-Limit Protection
|
• 4-Lead 1.0 mm x 1.0 mm Ultra Thin DFN Package
|
• MIC5501/4 5-Lead SOT23 Package
|
|
| CATALOG |

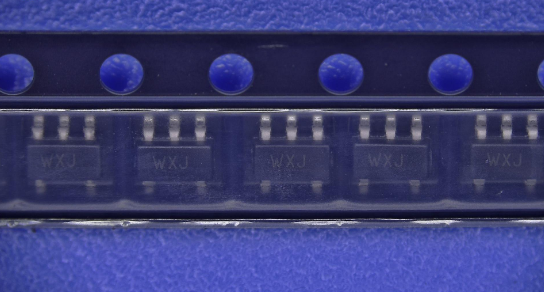

MIC5504-2.5YM5-TR COUNTRY OF ORIGIN
|
MIC5504-2.5YM5-TR PARAMETRIC INFO
|
MIC5504-2.5YM5-TR PACKAGE INFO
|
MIC5504-2.5YM5-TR MANUFACTURING INFO
|
MIC5504-2.5YM5-TR PACKAGING INFO
|
MIC5504-2.5YM5-TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
253°C/W(Typ) |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Load Regulation |
40mV |
| Line Regulation |
0.02%/V(Typ) |
| Maximum Dropout Voltage @ Current (V) |
0.19@150mA|0.38@300mA |
| Minimum Input Voltage (V) |
2.5 |
| Maximum Input Voltage (V) |
5.5 |
| Output Voltage (V) |
2.5 |
| Typical Quiescent Current (mA) |
0.038 |
| Typical Dropout Voltage @ Current (V) |
0.08@150mA|0.16@300mA |
| Accuracy (%) |
±2 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
0.042 |
| Typical PSRR (dB) |
60 |
| Typical Output Capacitance (uF) |
1 |
| Typical Output Noise Voltage (uVrms) |
175 |
| Output Capacitor Type |
Ceramic |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Pin Count |
5 |
| PCB |
5 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Smartphones
|
• DSC, GPS, PMP, and PDAs
|
• Medical Devices
|
• Portable Electronics
|
• 5V Systems
|
|
