• Tria⊗is® Magnetometer (BX, BY, BZ)
|
• On Chip Signal Processing for Robust Position
Sensing
|
• High Speed Serial Interface (SPI compatible –
Full Duplex)
|
• Enhanced Self-Diagnostics Features
|
• 5V and 3V3 Application Compatible
|
| • 14 bit Output Resolution |
| • 48 bit ID Number |
| • Single Die – SOIC-8 Package RoHS Compliant |
| • Dual Die (Full Redundant) – TSSOP-16 Package
RoHS Compliant |
|
| CATALOG |
MLX90363KDC-ABB-000-RE COUNTRY OF ORIGIN
|
MLX90363KDC-ABB-000-RE PARAMETRIC INFO
|
MLX90363KDC-ABB-000-RE PACKAGE INFO
|
MLX90363KDC-ABB-000-RE PACKAGING INFO
|
MLX90363KDC-ABB-000-RE ECAD MODELS
|
MLX90363KDC-ABB-000-RE APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Category |
Magnetic Sensor |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Module/IC Classification |
IC |
| Typical Operating Supply Voltage (V) |
5 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
150 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Maximum Supply Current (mA) |
15.5 |
| Output Type |
Digital |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Package Length (mm) |
4.98(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.57(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging Suffix |
RE |

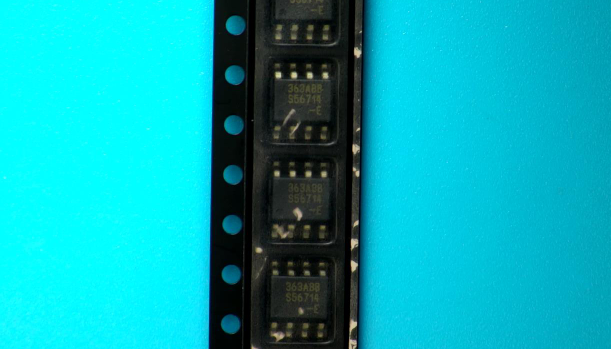

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

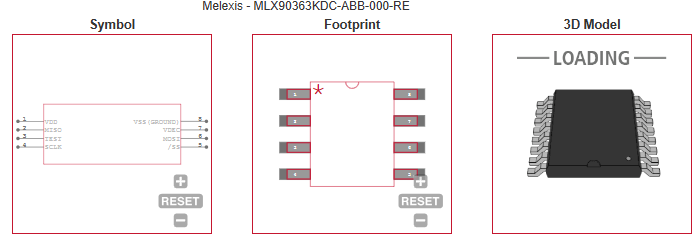

ECAD MODELS
|
|
|
APPLICATIONS
|
• Absolute Contacless Position Sensor
|
| • Steering Wheel Position Sensor |
• 3D Joystick Position Sensor
|
|
| |
| |
