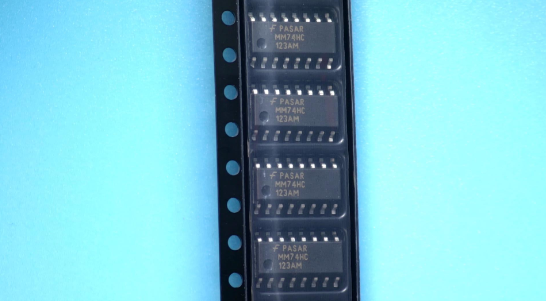

MM74HC123AMX onsemi / Fairchild IC MULTIVIBRATOR DUAL 16-SOIC

label:

2024/12/18 218

MM74HC123AMX onsemi / Fairchild IC MULTIVIBRATOR DUAL 16-SOIC

CATALOG

MM74HC123AMX COUNTRY OF ORIGIN

MM74HC123AMX LIFECYCLE

MM74HC123AMX PARAMETRIC INFO

MM74HC123AMX PARAMETRIC INFO

MM74HC123AMX MANUFACTURING INFO

MM74HC123AMX PACKAGING INFO

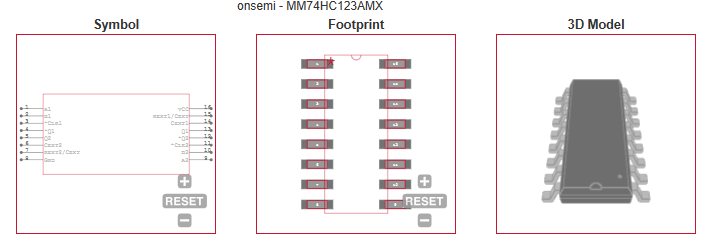

MM74HC123AMX ECAD MODELS

COUNTRY OF ORIGIN

Malaysia

Philippines

Obsolete
Mar 02,2011

PARAMETRIC INFO

Logic Family	HC
Process Technology	CMOS
Logic Function	Monostable Multivibrator
Number of Elements per Chip	2
Minimum Operating Supply Voltage (V)	2
Maximum Operating Supply Voltage (V)	6
Typical Operating Supply Voltage (V)	2.5\|3.3\|5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Maximum High Level Output Current (mA)	-5.2
Maximum Low Level Output Current (mA)	5.2
Maximum Propagation Delay Time @ Maximum CL (ns)	197@2V\|48@4.5V\|38@6V
Maximum Quiescent Current (mA)	0.008
Absolute Propagation Delay Time (ns)	250

PARAMETRIC INFO

Supplier Package	SOIC N
Basic Package Type	Lead-Frame SMT
Pin Count	16
Lead Shape	Gull-wing
PCB	16
Tab	N/R
Pin Pitch (mm)	1.27
Package Length (mm)	10(Max)
Package Width (mm)	4(Max)
Package Height (mm)	1.5(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	10(Max)
Package Overall Width (mm)	6
Package Overall Height (mm)	1.75(Max)
Seated Plane Height (mm)	1.75(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Small Outline IC Narrow Body
Package Family Name	SO
Jedec	MS-012AC
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	IPC-1752
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	5 to 6
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu Alloy
Number of Wave Cycles	2

Packaging Suffix	X
Packaging	Tape and Reel
