• 1.95 V to 3.6 V supply voltage
|
• 1.62 V to 3.6 V digital interface voltage
|
• ±2 g, ±4 g, and ±8 g dynamically selectable full-scale ranges
|
• Output Data Rates (ODR) from 1.56 Hz to 800 Hz
|
• 12-bit digital output
|
|
| CATALOG |
MMA8652FCR1 LIFECYCLE
|
MMA8652FCR1 PARAMETRIC INFO
|
MMA8652FCR1 PACKAGE INFO
|
MMA8652FCR1 MANUFACTURING INFO
|
MMA8652FCR1 PACKAGING INFO
|

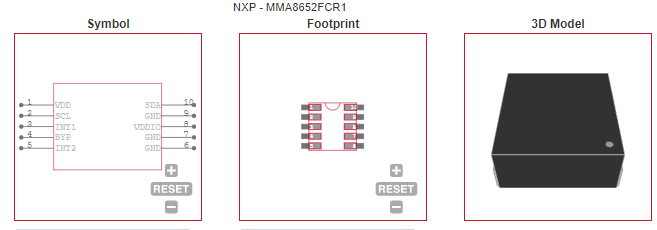

MMA8652FCR1 ECAD MODELS
|
MMA8652FCR1 APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
Dec 01,2021
|
|
PARAMETRIC INFO
|
| Acceleration (g) |
±2/±4/±8 |
| Axis Type |
Triple |
| Minimum Operating Supply Voltage (V) |
1.95 |
| Typical Operating Supply Voltage (V) |
2.5 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Rise Time (ns) |
300 |
| Maximum Fall Time (ns) |
300 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Output Type |
Digital |
| Operating Supply Voltage Range (V) |
1.95 to 3.6 |
| Acceleration Range (g) |
±4 to ±40 |
|
|
PACKAGE INFO
|
| Supplier Package |
DFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
No Lead |
| PCB |
10 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Dual Flat Package No Lead |
| Package Family Name |
DFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

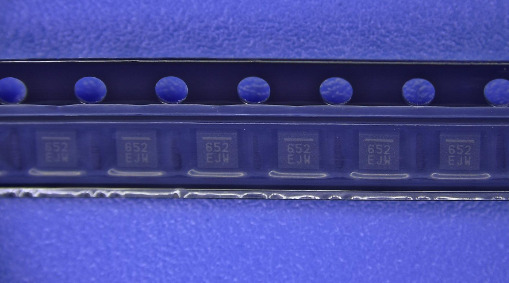

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Tilt compensation in e-compass applications |
| • Static orientation detection (Portrait/Landscape, Up/Down, Left/Right, Back/Front position identification) |
| • Notebook, tablet, e-reader, and laptop tumble and freefall detection |
| • Real-time orientation detection (virtual reality and gaming 3D user orientation feedback) |
| • Real-time activity analysis (pedometer step counting, freefall drop detection for HDD, dead-reckoning GPS backup) |
| • Motion detection for portable product power saving (Auto-SLEEP and Auto-WAKE for cell phone, PDA, GPS, gaming) |
| • Shock and vibration monitoring (mechatronic compensation, shipping and warranty usage logging) |
| • User interface (tilt menu scrolling, tap detection for button replacement) |
| |
