• Max output data rate of 1000Hz
|
• Industrial standard low profile package 3.0mm x 3.0mm x 1.0mm
|
• On-chip sensitivity compensation
|
• On-chip temperature sensor
|
• Data_Ready Interrupt
|
• Low power consumption
|
• I2C Slave, FAST(≤400KHz) mode
|
• 3.0V single low power supply
|
• SPI interface available
|
• RoHS compliant
|
|
| CATALOG |
MMC5983MA COUNTRY OF ORIGIN
|
MMC5983MA PACKAGE INFO
|
MMC5983MA PACKAGING INFO
|
MMC5983MA ECAD MODELS
|
MMC5983MA FUNCTIONAL BLOCK DIAGRAM
|
MMC5983MA APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PACKAGE INFO
|
| Supplier Package |
LGA |
| Pin Count |
16 |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1 |
| Mounting |
Surface Mount |
| Package Family Name |
LGA |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|

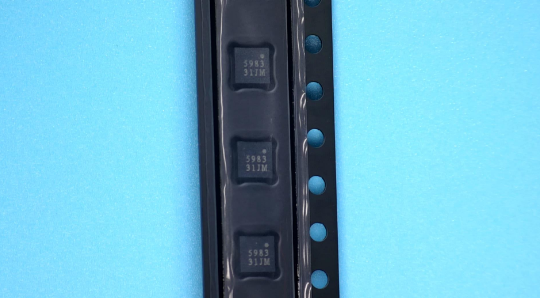

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|

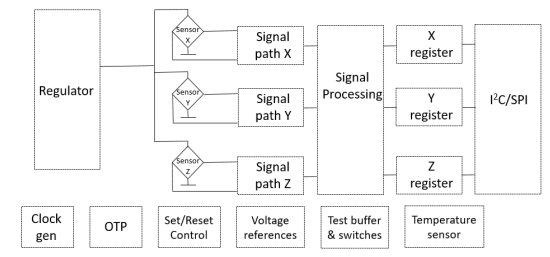

FUNCTIONAL BLOCK DIAGRAM
|
 |
|
| APPLICATIONS |
| • Electronic Compass & Navigation |
| • Position Sensing |
| • General Purpose Magnetic Field Measurements |
| |
