• BVCEO > 40V
|
• IC = 200mA High Collector Current
|
• Epitaxial Planar Die Construction
|
| • Ideal for Medium Power Amplification and Switching
|
| • Ultra-Small Surface Mount Package |
| • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) |
| • Halogen and Antimony Free. “Green” Device (Note 3)
|
| • For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
|
|
| CATALOG |
| MMDT3904VC-7 COUNTRY OF ORIGIN |
MMDT3904VC-7 PARAMETRIC INFO
|
MMDT3904VC-7 PACKAGE INFO
|
MMDT3904VC-7 MANUFACTURING INFO
|
MMDT3904VC-7 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Type |
NPN |
| Configuration |
Dual |
| Maximum Collector-Emitter Voltage (V) |
40 |
| Maximum Collector Base Voltage (V) |
60 |
| Maximum Emitter Base Voltage (V) |
6 |
| Maximum DC Collector Current (A) |
0.2 |
| Maximum Power Dissipation (mW) |
150 |
| Maximum Collector-Emitter Saturation Voltage (V) |
0.2@1mA@10mA|0.3@5mA@50mA |
| Maximum Base Emitter Saturation Voltage (V) |
0.85@1mA@10mA|0.95@5mA@50mA |
| Category |
Bipolar Small Signal |
| Minimum DC Current Gain |
40@100uA@1V|70@1mA@1V|100@10mA@1V|60@50mA@1V|30@100mA@1V |
| Number of Elements per Chip |
2 |
| Maximum Transition Frequency (MHz) |
300(Min) |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-563 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Flat |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
1.6 |
| Package Width (mm) |
1.2 |
| Package Height (mm) |
0.6 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.6 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
7 |
| Packaging |

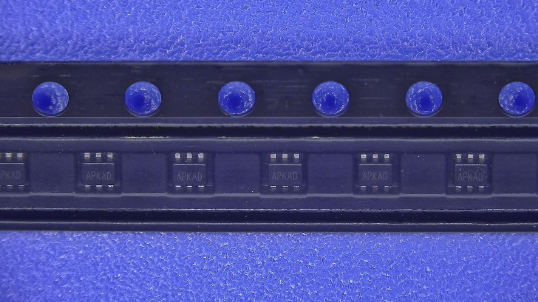

Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
