• Simplifies Logic Control of 115 VAC Power
|
• Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise
|
• dv/dt of 2000 V/s Typical, 1000 V/s Guaranteed
|
• These are Pb−Free Devices
|
|
| CATALOG |

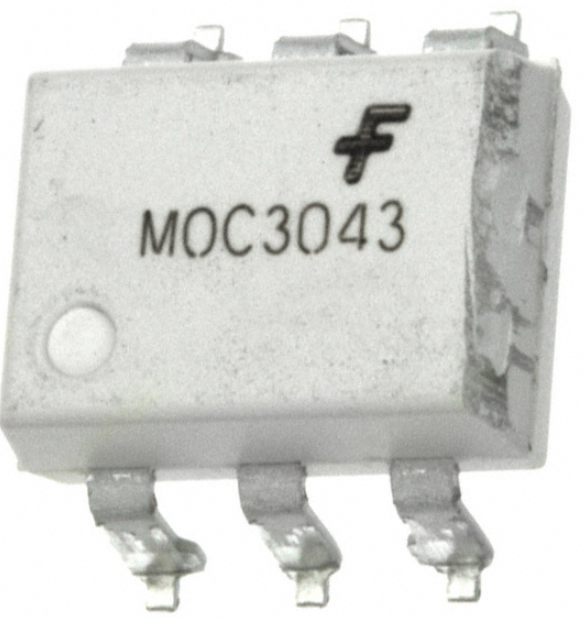

MOC3043SM COUNTRY OF ORIGIN
|
MOC3043SM PARAMETRIC INFO
|
MOC3043SM PACKAGE INFO
|
MOC3043SM MANUFACTURING INFO
|
MOC3043SM PACKAGING INFO
|
MOC3043SM APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Czechia
|
|
PARAMETRIC INFO
|
| Output Device |
Triac |
| Number of Channels per Chip |
1 |
| Output Type |
AC |
| Standard |
VDE |
| Zero-Crossing Circuit |
Yes |
| Typical Forward Voltage (V) |
1.25 |
| Maximum Forward Voltage (V) |
1.5 |
| Maximum Forward Current (mA) |
60 |
| Repetitive Peak Off-State Voltage (V) |
400 |
| Maximum Output Voltage (VAC) |
280 |
| Repetitive Peak Off-State Current (uA) |
0.1 |
| Minimum Trigger Current (mA) |
5(Max) |
| Typical Critical Rate of Rise of Off-State Voltage (V/us) |
1000(Min) |
| Maximum Reverse Voltage (V) |
6 |
| Minimum Isolation Voltage (Vrms) |
5250 |
| Maximum Power Dissipation (mW) |
250 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
PDIP SMD |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
8.51 |
| Package Width (mm) |
6.35 |
| Package Height (mm) |
3.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
8.51 |
| Package Overall Width (mm) |
9.17 |
| Package Overall Height (mm) |
4.8(Max) |
| Seated Plane Height (mm) |
4.8(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Surface Mount Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuFePZnAg |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
1000 |
|
|
APPLICATIONS
|
• Solenoid/Valve Controls
|
• Lighting Controls
|
• Static Power Switches
|
| • AC Motor Drives |
| • Temperature Controls |
| • E.M. Contactors |
| • AC Motor Starters |
| • Solid State Relays |
| |
