• Wide 4.5V to 21V Operating Input Range
|
• 6A Output Current
|
• Low 40mΩ/18mΩ RDS(ON) of Internal Power MOSFETs
|
• Programmable Switching Frequency
|
• Frequency SYNC from 300KHz to 2MHz External Clock
|
• Low-Power Mode Selectable by an External Signal
|
• External Soft-Start
|
|
| CATALOG |
MP2229GQ-Z COUNTRY OF ORIGIN
|
MP2229GQ-Z PARAMETRIC INFO
|
MP2229GQ-Z PACKAGE INFO
|
MP2229GQ-Z MANUFACTURING INFO
|
MP2229GQ-Z PACKAGING INFO
|
MP2229GQ-Z ECAD MODELS
|
MP2229GQ-Z APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
21 |
| Output Voltage (V) |
0.6(Min) |
| Maximum Output Current (A) |
6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
2100 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4.5 to 21 |
| Output Type |
Adjustable |
| Load Regulation |
1%(Typ) |
| Typical Quiescent Current (uA) |
400 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
10.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
14 |
| Lead Shape |
No Lead |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Number of Wave Cycles |
N/R |
|
|

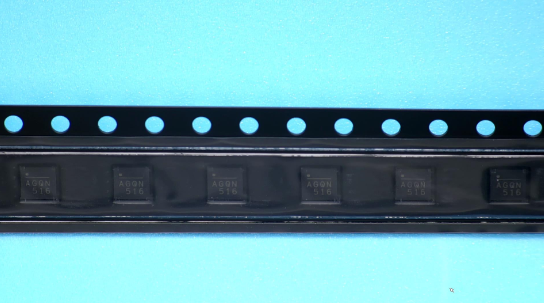

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

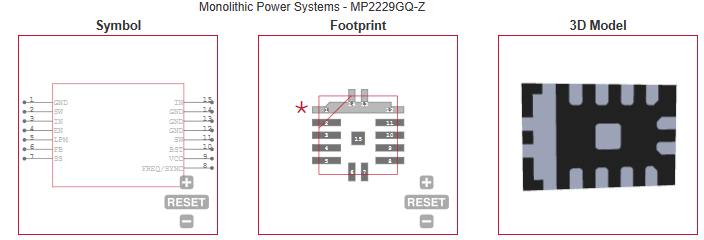

ECAD MODELS
|
|
|
APPLICATIONS
|
• DSL Modems
|
• Cable Modems
|
| • Set -Top Boxes |
| • Telecom |
| • Distributed Power Systems |
| |
