• Wide 4V to 36V Continuous Operating Input Range
|
• 90mΩ/55mΩ Low RDS(ON) Internal Power MOSFETs
|
• High-Efficiency Synchronous Mode Operation
|
• Default 410kHz Switching Frequency
|
• Synchronizes to a 200kHz to 2.2MHz External Clock
|
• High Duty Cycle for Automotive Cold-crank
|
• Power-Save Mode
|
|
| CATALOG |
MP4420HGJ-Z COUNTRY OF ORIGIN
|
MP4420HGJ-Z PARAMETRIC INFO
|
MP4420HGJ-Z PACKAGE INFO
|
MP4420HGJ-Z MANUFACTURING INFO
|
MP4420HGJ-Z PACKAGING INFO
|
MP4420HGJ-Z APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
36 |
| Output Voltage (V) |
0.8 to 32.4 |
| Maximum Output Current (A) |
2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Switching Frequency (kHz) |
500 |
| Switching Regulator |
Yes |
| Operating Supply Voltage Range (V) |
4 to 36 |
| Output Type |
Adjustable |
| Load Regulation |
4% |
| Typical Quiescent Current (uA) |
500 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.2 |
|
|

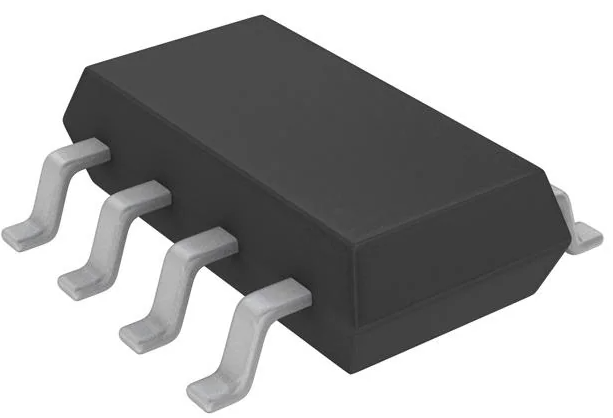

PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3(Max) |
| Package Width (mm) |
1.7(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Automotive
|
| • Industrial Control System |
| • Distributed Power Systems |
| |
