• Fixed Threshold Voltages for Standard Voltage Rails From 0.9V to 5V and Adjustable Voltage From 0.4V are Available
|
• Low Quiescent Current: 1.6uA typ
|
• Power-On Reset Generator with Adjustable Delay Time: 2.1ms to 10s
|
• High Threshold Accuracy: ±1% typ
|
• Immune to Short Negative SENSE voltage
|
|
| CATALOG |
MP6400DG-01-LF-Z COUNTRY OF ORIGIN
|
MP6400DG-01-LF-Z PARAMETRIC INFO
|
MP6400DG-01-LF-Z PACKAGE INFO
|
MP6400DG-01-LF-Z MANUFACTURING INFO
|
MP6400DG-01-LF-Z PACKAGING INFO
|
MP6400DG-01-LF-Z ECAD MODELS
|
MP6400DG-01-LF-Z APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
Yes |
| Watchdog Timer |
No |
| Number of Supervisors |
1 |
| Typical Reset Threshold Voltage (V) |
0.4 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Operating Supply Voltage (V) |
6 |
| Monitored Voltage (V) |
Adj |
| Maximum Power Dissipation (mW) |
2500 |
| Maximum Supply Current (uA) |
1.85(Typ) |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Type |
Voltage Monitor |
|
|

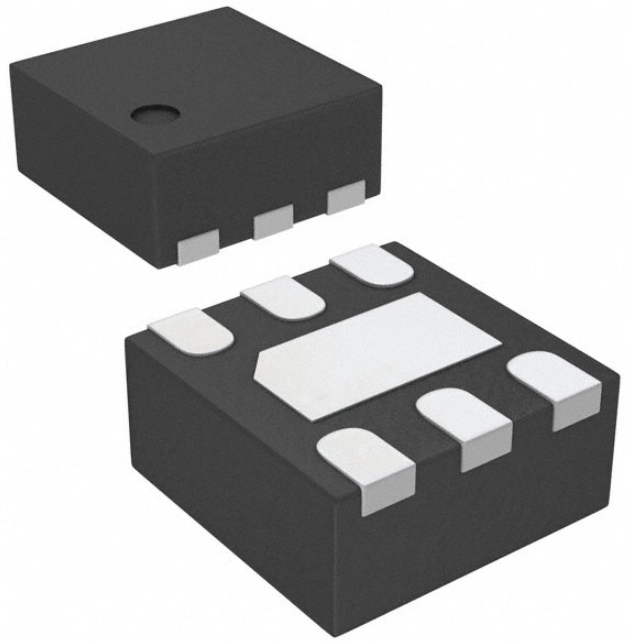

PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.1(Max) |
| Package Width (mm) |
2.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
Z |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
22.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

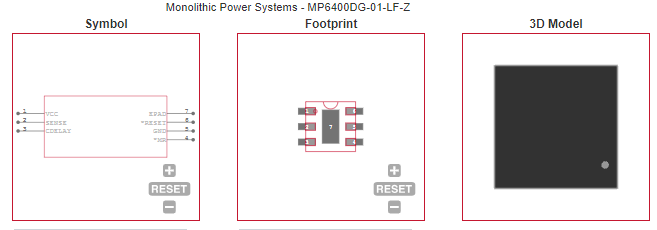

ECAD MODELS
|
|
|
| APPLICATIONS |
| • DSP or Micro controller Applications |
| • Laptop/Desktop Computers |
| • PDAs/Hand-Held Products |
| • Portable/Battery-Powered Products |
| • FPGA/ASIC Applications |
| |
