| • 4.5 V to 24 V Operating Input Range |
| • 2 A Continuous Load Current |
| • 90 mΩ/40 mΩ Low RDS(ON) Internal Power
MOSFETs |
| • Integrated Inductor |
| • Integrated VCC and Bootstrap Capacitors |
| • Power-Save Mode at Light Load |
| • Power Good Indicator |
| • Over-Current Protection and Hiccup |
| • Thermal Shutdown |
| • Output Adjustable from 0.8 V |
| • Available in QFN20 (3mm x 5mm x 1.6mm)
Package |
| • Total Solution Size 6.7mm x 7.3mm |
|
| CATALOG |
| MPM3620AGQV-Z COUNTRY OF ORIGIN |
| MPM3620AGQV-Z PARAMETRIC INFO |
| MPM3620AGQV-Z PACKAGE INFO |
| MPM3620AGQV-Z MANUFACTURING INFO |
| MPM3620AGQV-Z PACKAGING INFO |
| MPM3620AGQV-Z ECAD MODELS |
| MPM3620AGQV-Z APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.8 to 19.9 |
| Maximum Output Current (A) |
2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
24 |
| Output Type |
Adjustable |
| Load Regulation |
1.5%(Typ) |
| Switching Frequency (kHz) |
2400 |
| Typical Standby Current (mA) |
0.0065 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| On/Off Logic |
Positive |
|
| |
| PACKAGE INFO |
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
No Lead |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
1.6(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.65(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
MO-220 |
|
| |
| MANUFACTURING INFO |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Number of Wave Cycles |
N/R |
|
| |

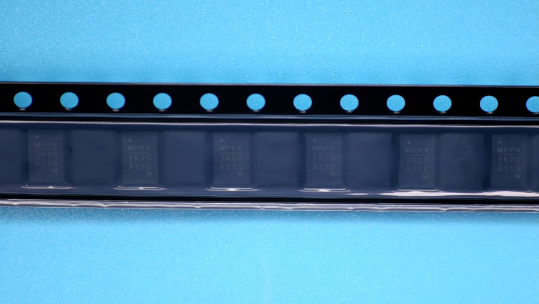

| PACKAGING INFO |
| Packaging Suffix |
Z |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
| |

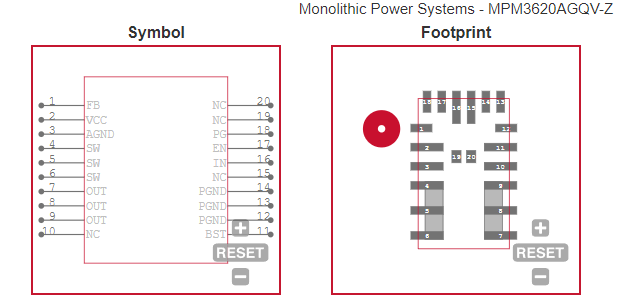

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Industrial Controls |
| • Medical and Imaging Equipment |
| • Telecom and Networking Applications |
| • LDO Replacement |
| • Space and Resource-Limited Applications |
|
