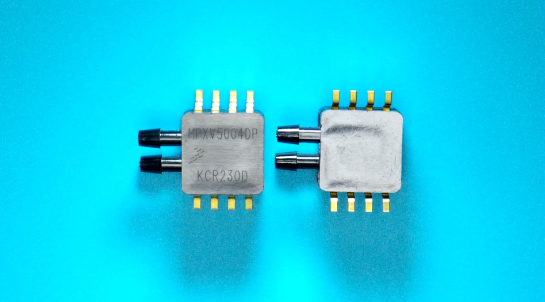

MPXV5004DP NXP Semiconductors SENSOR PRESSURE SMD 8-SOP

label:

2023/11/14 451

CATALOG

MPXV5004DP COUNTRY OF ORIGIN

MPXV5004DP PARAMETRIC INFO

MPXV5004DP PACKAGE INFO

MPXV5004DP MANUFACTURING INFO

MPXV5004DP PACKAGING INFO

MPXV5004DP ECAD MODELS

COUNTRY OF ORIGIN

MKorea (Republic of)

PARAMETRIC INFO

Device Pressure Type	Differential
Equivalent Overload Pressure Range (psi)	<20
Maximum Operating Supply Voltage (V)	5.25
Maximum Operating Temperature (°C)	85
Maximum Overload Pressure	16kPa
Maximum Storage Temperature (°C)	100
Maximum Supply Current (mA)	10
Minimum Operating Supply Voltage (V)	4.75
Minimum Operating Temperature (°C)	0
Minimum Storage Temperature (°C)	-30
Output Type	Analog(Voltage)
Linearity	Yes
Operating Pressure Range	0kPa to 3.92kPa
Media	Air
Typical Operating Supply Voltage (V)	5
Accuracy (%)	±6.25
Operating Supply Voltage (V)	5

Supplier Package	SNSR
Basic Package Type	Lead-Frame SMT
Pin Count	8
Lead Shape	Gull-wing
PCB	8
Tab	N/R
Pin Pitch (mm)	2.54
Package Length (mm)	12.32(Max)
Package Width (mm)	12.32(Max)
Package Height (mm)	9.65(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	9.91(Max)
Mounting	Surface Mount
Package Material	Plastic
Jedec	N/A

MANUFACTURING INFO

MSL	N/A
Maximum Reflow Temperature (°C)	245
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy

Packaging	Tray
Quantity Of Packaging	125
Packaging Document	Link to Datasheet
