| • 5.0% Maximum Error over 0 to 85C |
| • Ideally Suited for Microprocessor or Microcontroller-Based Systems |
| • Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package |
| • Temperature Compensated over -40 to +125C |
| • Patented Silicon Shear Stress Strain Gauge |
| • Available in Differential and Gauge Configurations |
| • Available in Surface Mount (SMT) or Through-hole (DIP) Configurations |
|
| CATALOG |
| MPXV5010GC6T1 COUNTRY OF ORIGIN |
| MPXV5010GC6T1 PARAMETRIC INFO |
| MPXV5010GC6T1 PACKAGE INFO |
| MPXV5010GC6T1 MANUFACTURING INFO |
| MPXV5010GC6T1 PACKAGING INFO |
| MPXV5010GC6T1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Korea |
|
| PARAMETRIC INFO |
| Device Pressure Type |
Gage |
| Equivalent Overload Pressure Range (psi) |
<20 |
| Maximum Operating Supply Voltage (V) |
5.25 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Overload Pressure |
40kPa |
| Maximum Storage Temperature (°C) |
125 |
| Maximum Supply Current (mA) |
10 |
| Minimum Operating Supply Voltage (V) |
4.75 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-40 |
| Output Type |
Analog(Voltage) |
| Linearity |
Yes |
| Operating Pressure Range |
0kPa to 10kPa |
| Output Voltage (V) |
0.2 to 4.7 |
| Media |
Air |
| Typical Full Scale Output |
4.7VDC |
| Response Time (ms) |
1 |
| Typical Operating Supply Voltage (V) |
5 |
| Accuracy (%) |
±5 |
| Operating Supply Voltage (V) |
5 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
11.38(Max) |
| Package Width (mm) |
11.38(Max) |
| Package Height (mm) |
12.96(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
13.21(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Plastic Small Outline Package |
| Package Family Name |
SO |
|
| |
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
T1 |

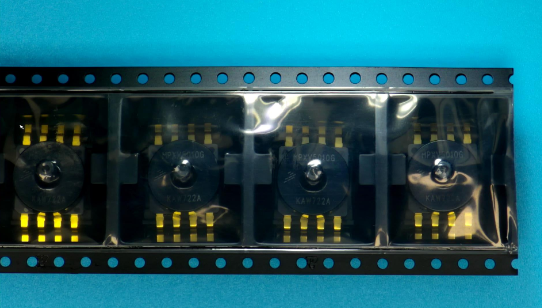

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
100 |
| Packaging Document |
Link to Datasheet |
|
| |
| APPLICATIONS |
| • Hospital Beds |
| • HVAC |
| • Respiratory Systems |
| • Process Control |
| • Washing Machine Water Level
Measurement (Reference AN1950)
|
| • Ideally Suited for Microprocessor or
Microcontroller-Based Systems |
| • Appliance Liquid Level and Pressure
Measurement |
|
