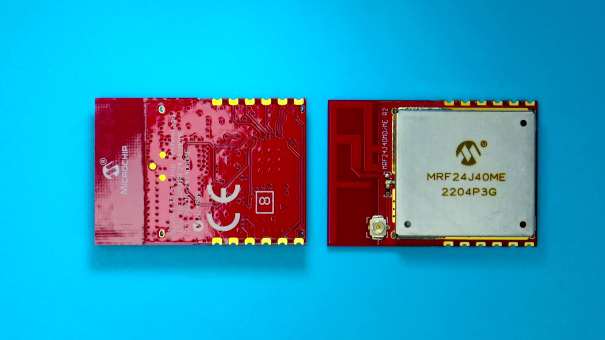

• IEEE Std. 802.15.4™ Compliant RF Transceiver
|
• Supports ZigBee®, MiWi™ Development
Environment Proprietary Wireless Networking
Protocols
|
• 4-Wire Serial Peripheral Interface (SPI) with
Interrupt
|
• Small size: 0.9" x 1.3" (22.9 mm x 33.0 mm),
Surface Mountable: Pin Compatible with
MRF24J40MB and MRF24J40MC
|
• Integrated Crystal, Internal Voltage Regulator,
Matching Circuitry, Power Amplifier, Low Noise
Amplifier
|
| • PCB Antenna (MRF24J40MD), External Antenna
Connector (MRF24J40ME): Ultra Miniature
Coaxial (U.FL), 50Ω |
| • Easy Integration into Final Product: Minimize
Product Development, Quicker Time to Market |
| • Compliance:
- Modular Certified for the United States (FCC)
and Canada (IC)
- European R&TTE Directive Assessed Radio
Module
- Australia/New Zealand |
• Compatible with Microchip microcontroller
families (PIC16, PIC18, PIC24, dsPIC33 and
PIC32)
|
| • Range up to 4000 ft |
|
| CATALOG |
MRF24J40ME-I/RM COUNTRY OF ORIGIN
|
MRF24J40ME-I/RM PARAMETRIC INFO
|
MRF24J40ME-I/RM PACKAGE INFO
|
MRF24J40ME-I/RM MANUFACTURING INFO
|
MRF24J40ME-I/RM PACKAGING INFO
|
MRF24J40ME-I/RM ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Thailand |
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Category |
RF Transceiver Module |
| Maximum RF Operating Frequency Range (MHz) |
1500 to 2500 |
| Maximum Data Rate |
250Kbps |
| Operating Band Frequency (MHz) |
2405 to 2480 |
| Maximum RF Operating Frequency (MHz) |
2480 |
| Typical Transmitter Output Power (dBm) |
19 |
| Typical Receiver Sensitivity (dBm) |
-104 |
| Control Interface |
Serial (4-Wire, SPI) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Typical Operating Supply Voltage |
3.3V |
| Minimum Operating Supply Voltage |
3V |
| Operating Supply Voltage |
3.3V |
| Maximum Operating Supply Voltage |
3.6V |
|
|
PACKAGE INFO
|
| Supplier Package |
SMD Module |
| Pin Count |
12 |
| PCB |
12 |
| Tab |
N/R |
| Package Length (mm) |
33.02 |
| Package Width (mm) |
22.86 |
| Package Height (mm) |
3.35 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Family Name |
SMD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
AuNi |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
40 |
|
|

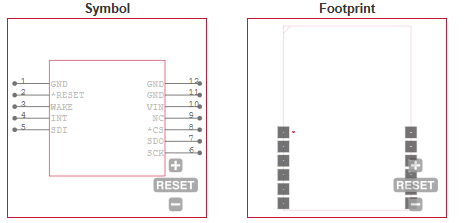

ECAD MODELS
|
|
|
