• Low supply voltage range:
3.6 V down to 1.8 V
|
• Wake up from standby mode in 3 µs (typical)
|
• 16-bit RISC architecture, extended memory, up to
20-MHz system clock
|
| • Flexible power-management system
– Fully integrated LDO with programmable
regulated core supply voltage
– Supply voltage supervision, monitoring, and
brownout |
| • Four 16-bit timers with 3, 5, or 7 capture/compare
registers |
| • Full-speed universal serial bus (USB)
– Integrated USB-PHY
– Integrated 3.3-V and 1.8-V USB power system
– Integrated USB-PLL
– Eight input and eight output endpoints |
| • 12-bit analog-to-digital converter (ADC) with
internal shared reference, sample-and-hold, and
autoscan feature
|
| • Two 12-bit digital-to-analog converters (DACs) with
synchronization |
|
| CATALOG |
| MSP430F5359IPZR COUNTRY OF ORIGIN |
MSP430F5359IPZR PARAMETRIC INFO
|
MSP430F5359IPZR PACKAGE INFO
|
MSP430F5359IPZR MANUFACTURING INFO
|
MSP430F5359IPZR PACKAGING INFO
|
MSP430F5359IPZR ECAD MODELS
|
MSP430F5359IPZR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
16 |
| Family Name |
MSP430 |
| Device Core |
MSP430 |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
20 |
| Program Memory Type |
Flash |
| Program Memory Size |
512KB |
| RAM Size |
66KB |
| Maximum CPU Frequency (MHz) |
20 |
| Number of Programmable I/Os |
74 |
| Number of Timers |
4 |
| ADC Channels |
16 |
| DAC Channels |
2 |
| ADC Resolution (bit) |
12 |
| Number of ADCs |
Single |
| Core Architecture |
MSP430 |
| Number of DACs |
Single |
| DAC Resolution (bit) |
12 |
| Watchdog |
1 |
| LCD Segments |
160 |
| Analog Comparators |
1 |
| Interface Type |
I2C/SPI/UART |
| Programmability |
Yes |
| SPI |
6 |
| I2C |
3 |
| I2S |
0 |
| UART |
3 |
| USART |
0 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
|
|

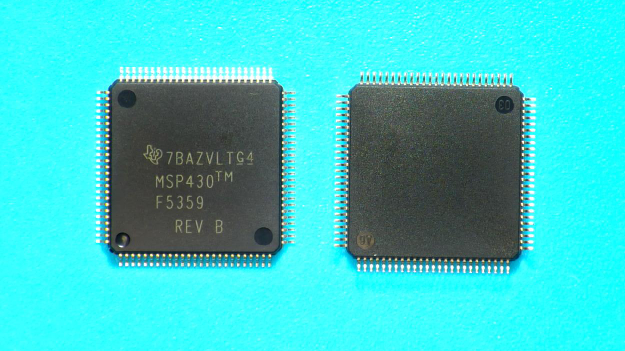

PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
100 |
| Lead Shape |
Gull-wing |
| PCB |
100 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
14.2(Max) |
| Package Width (mm) |
14.2(Max) |
| Package Height (mm) |
1.45(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
16.2(Max) |
| Package Overall Width (mm) |
16.2(Max) |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026 |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

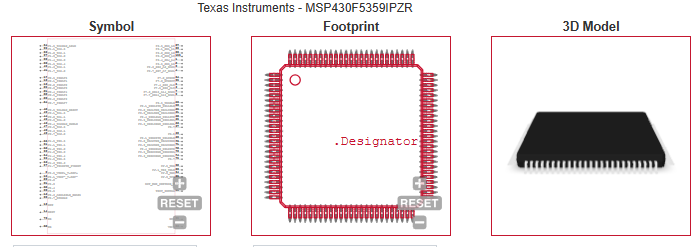

ECAD MODELS
|
|
|
APPLICATIONS
|
• Analog and digital sensor systems
|
• Digital motor controls
|
| • Remote controls |
| • Thermostats |
| • Digital timers |
• Hand-held meters
|
| |
