• Low Supply-Voltage Range:3.6 V Down to 1.8 V
|
• Wake up From Standby Mode in 3 µs (Typical)
|
• 16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
|
| • Flexible Power-Management System– Fully Integrated LDO With Programmable Regulated Core Supply Voltage– Supply Voltage Supervision, Monitoring, and Brownout– System Operation From up to Two Auxiliary Power Supplies
|
| • One 16-Bit Timer With Three Capture/Compare Registers |
| • Three 16-Bit Timers With Two Capture/Compare Registers Each |
| • Password-Protected RTC With Crystal Offset Calibration and Temperature Compensation |
| • Three-Channel Internal DMA |
|
| CATALOG |
MSP430F6736AIPNR PARAMETRIC INFO
|
MSP430F6736AIPNR PACKAGE INFO
|
MSP430F6736AIPNR MANUFACTURING INFO
|
MSP430F6736AIPNR PACKAGING INFO
|
MSP430F6736AIPNR ECAD MODELS
|
| MSP430F6736AIPNR APPLICATIONS |
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
16 |
| Series name |
MSP430 |
| Device Core |
MSP430 |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
25 |
| Program Memory Type |
Flash |
| Program Memory Size |
128KB |
| RAM Size |
8KB |
| Maximum CPU Frequency (MHz) |
25 |
| Number of Programmable I/Os |
52 |
| Number of Timers |
4 |
| ADC Channels |
5/5/5 |
| ADC Resolution (bit) |
24/24/24 |
| Number of ADCs |
Triple |
| Core Architecture |
MSP430 |
| PWM |
4 |
| Watchdog |
1 |
| LCD Segments |
320 |
| Parallel Master Port |
no |
| Real Time Clock |
yes |
| Special Features |
LCD Controller |
| Interface Type |
I2C/SPI/UART |
| Timers Resolution (bit) |
16/16/16/16 |
| Programmability |
yes |
| SPI |
4 |
| I2C |
1 |
| I2S |
0 |
| UART |
3 |
| USART |
0 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
105 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier packaging |
LQFP |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
80 |
| Pin shape |
Gull-wing |
| PCB |
80 |
| ears |
N/R |
| Pin spacing (mm) |
0.5 |
| Package length (mm) |
12.2(Max) |
| Package width (mm) |
12.2(Max) |
| Package height (mm) |
1.45(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
14.2(Max) |
| Package Overall Width (mm) |
14.2(Max) |
| Package Overall Height (mm) |
1.6(Max) |
| Mounting surface height (mm) |
1.6(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Low Profile Quad Flat Package |
| Package series name |
QFP |
| JEDEC |
MS-026BDD |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |

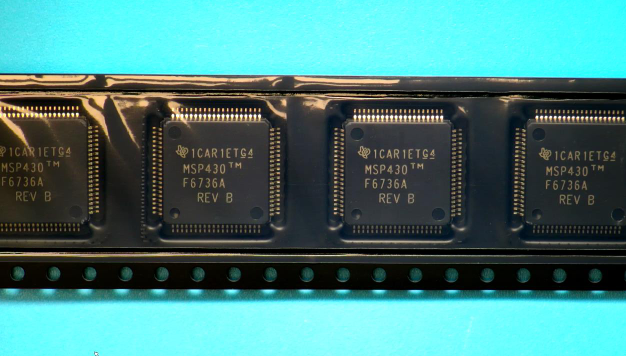

Tape and reel packaging |
| Packing quantity |
1000 |
| packaging type file |
Link to datasheet |
|
|

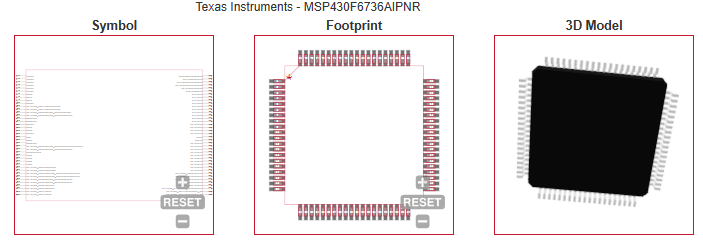

ECAD MODELS
|
|
|
APPLICATIONS
|
• Single-Phase Electronic Watt-Hour Meters
|
| • Energy Monitoring |
| • Utility Metering |
| |
| |
