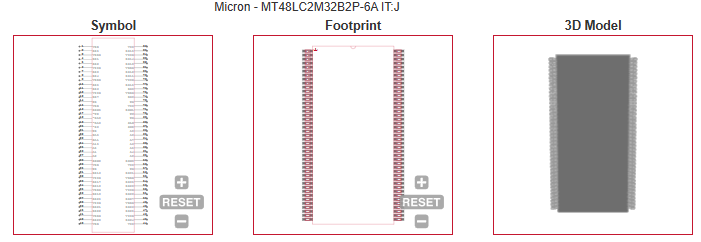

MT48LC2M32B2P-6A IT:J Micron IC DRAM 64M PARALLEL 86TSOP II

2024/06/25 438

CATALOG

Singapore

Type	SDR SDRAM
Density (bit)	64M
Maximum Clock Rate (MHz)	167
Maximum Access Time (ns)	17\|7.5\|5.4
Number of Bits per Word (bit)	32
Typical Operating Supply Voltage (V)	3.3
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Density in Bits (bit)	67108864
Maximum Operating Current (mA)	120
Organization	2Mx32
Number of Internal Banks	4
Number of Words per Bank	512K
Data Bus Width (bit)	32
Number of I/O Lines (bit)	32
Interface Type	LVTTL
Address Bus Width (bit)	13
Minimum Operating Supply Voltage (V)	3
Maximum Operating Supply Voltage (V)	3.6
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Operating Supply Voltage (V)	3.3
Process Technology	CMOS

Supplier Package	TSOP-II
Basic Package Type	Lead-Frame SMT
Pin Count	86
Lead Shape	Gull-wing
PCB	86
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	22.22
Package Width (mm)	10.16
Package Height (mm)	1(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	1.2(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Thin Small Outline Package (Type II)
Package Family Name	SO
Package Outline	Link to Datasheet

MSL	N/A
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Sn
Under Plating Material	N/A
Terminal Base Material	N/A
Number of Wave Cycles	N/R
