• Single IC Card Interface
|
• Fully Compatible with ISO 7816−3, EMV and Related Standards Including NDS
|
• Three Bidirectional Buffered I/O Level Shifters (C4, C7 and C8 Card Pins)
|
• 3.0 V or 5.0 V 5% Regulated Card Power Supply such as ICC 75 mA at 3.3 V VDDP 5.5 V
|
• Independent Power Supply Range on Controller Interface (2.7 V < VDD < 5.5 V)
|
• Handles 3.0 V and 5.0 V Smart Cards
|
|
| CATALOG |
NCN8024DWR2G COUNTRY OF ORIGIN
|
NCN8024DWR2G PARAMETRIC INFO
|
NCN8024DWR2G PACKAGE INFO
|
NCN8024DWR2G MANUFACTURING INFO
|
NCN8024DWR2G PACKAGING INFO
|
NCN8024DWR2G ECAD MODELS
|
NCN8024DWR2G APPLICATION
|
|
COUNTRY OF ORIGIN
|
United States of America
|
Philippines
|
|
PARAMETRIC INFO
|
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Supply Current (mA) |
200 |
| Maximum Clock Frequency (MHz) |
27 |
| Standard Supported |
EMV/ISO 7816-3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC W |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
18.05(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.36(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Wide Body |
| Package Family Name |
SO |
| Jedec |
MS-013AE |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 to 6 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
|

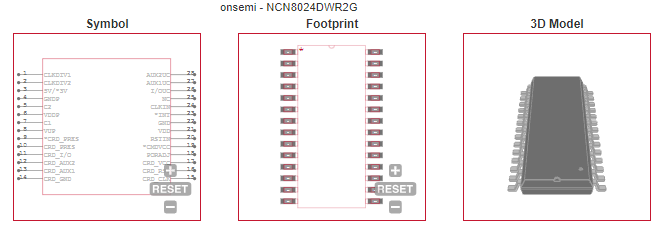

ECAD MODELS
|
 |
|
| APPLICATION |
| • Set−Top Boxes Conditional Access & Pay−TV |
| • Conditional Access Modules (CAM) |
| • POS / ATM |
| • Access Control, Identification |
| |
