• High−Frequency Operation from 20 kHz up to 750 kHz
|
• Current Mode Control Scheme
|
• Automatic Dead−time with Maximum Dead−time Clamp
|
| • Dedicated Startup Sequence for Fast Resonant Tank Stabilization
|
| • Skip Mode Operation for Improved Light Load Efficiency |
| • Off−mode Operation for Extremely Low No−load Consumption |
| • Latched or Auto−Recovery Overload Protection |
| • Latched or Auto−Recovery Output Short Circuit Protection |
| • Latched Input for Severe Fault Conditions, e.g. OVP or OTP |
| • Out of Resonance Switching Protection |
| • Open Feedback Loop Protection |
| • Precise Brown−Out Protection |
• PFC Stage Operation Control According to Load Conditions
|
| • Startup Current Source with Extremely Low Leakage Current |
| • Dynamic Self−Supply (DSS) Operation in Off−mode or Fault Modes |
| • Pin to Adjacent Pin / Open Pin Fail Safe |
| • These are Pb−Free Devices |
| |
| CATALOG |
| NCP1399AIDR2G COUNTRY OF ORIGIN |
NCP1399AIDR2G PARAMETRIC INFO
|
NCP1399AIDR2G PACKAGE INFO
|
NCP1399AIDR2G MANUFACTURING INFO
|
NCP1399AIDR2G PACKAGING INFO
|
NCP1399AIDR2G EACD MODELS
|
| NCP1399AIDR2G APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Thailand |
| United States of America |
|
PARAMETRIC INFO
|
| Topology |
Off-Line Switcher |
| Soft Start Option |
yes |
| Switching Frequency (kHz) |
750 |
| Typical Under Voltage Lock Out (V) |
8.9 |
| Minimum Supply Voltage (V) |
-0.3 |
| Maximum Supply Voltage (V) |
20 |
| Maximum Operating Current (mA) |
5.4(Typ) |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
14 |
| Pin shape |
Gull-wing |
| PCB |
14 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
10(Max) |
| Package width (mm) |
3.9 |
| Package height (mm) |
1.5(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
10(Max) |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.75(Max) |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Matte Sn annealed |
| Terminal Base Material |
CuFeAgZn |
|
|

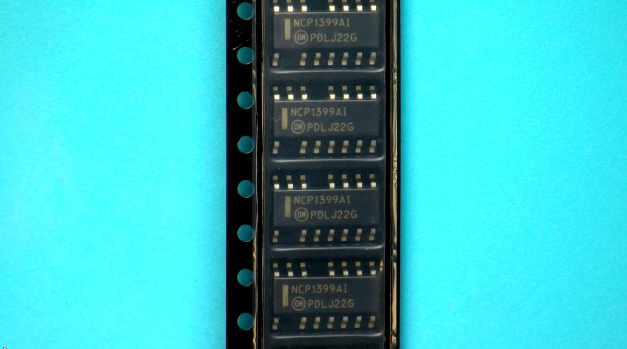

PACKAGING INFO
|
| Packaging Suffix |
R2 |
| Package |
Tape and reel packaging |
| Packing quantity |
2500 |
| packaging type file |
Link to datasheet |
|
|

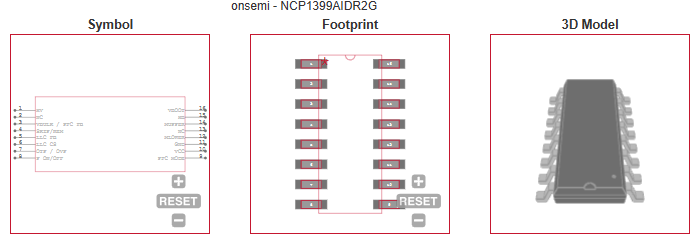

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Adapters and Offline Battery Chargers |
| • Flat Panel Display Power Converters |
| • Computing Power Supplies |
| • Industrial and Medical Power Sources |
| |
