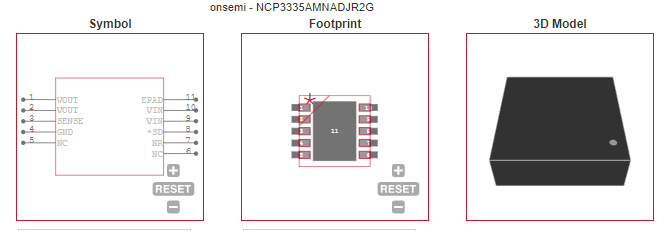

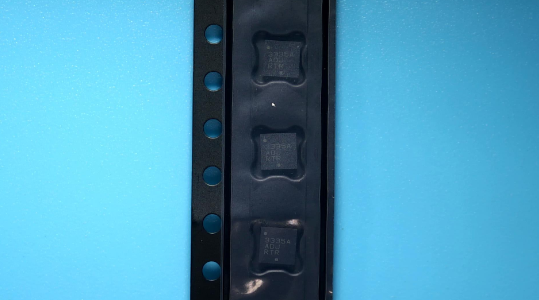

NCP3335AMNADJR2G onsemi IC REG LIN POS ADJ 500MA 10DFN

2025/08/18 37

CATALOG

Malaysia

Czechia

Type	LDO
Number of Outputs	1
Maximum Output Current (A)	0.5(Typ)
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	150
Output Type	Adjustable
Output Voltage Range (V)	<1.8\|1.8 to 10\|10 to 20
Junction to Ambient	215°C/W(Typ)
Polarity	Positive
Special Features	Current Limit\|Thermal Shutdown Protection
Load Regulation	0.04mV/mA(Typ)
Line Regulation	0.04mV/V(Typ)
Maximum Dropout Voltage @ Current (V)	0.34@500mA\|0.23@300mA\|0.11@50mA\|0.01@100uA
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	12
Output Voltage (V)	1.25 to 10
Reference Voltage (V)	1.261
Accuracy (%)	±0.9

Supplier Package	DFN EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	10
Lead Shape	No Lead
PCB	10
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	3
Package Width (mm)	3
Package Height (mm)	0.95(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	3
Package Overall Width (mm)	3
Package Overall Height (mm)	1(Max)
Seated Plane Height (mm)	1(Max)
Mounting	Surface Mount
Terminal Width (mm)	0.3(Max)
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Dual Flat Package No Lead, Exposed Pad
Package Family Name	DFN
Jedec	MO-229
Package Outline	Link to Datasheet

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	20 to 40
Number of Reflow Cycle	3
Standard	J-STD-020C
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy
