| • Programmable Output Voltage to 36 V |
• Low Minimum Operating Current: 40 A, Typ @ 25°C
|
• Voltage Reference Tolerance: ±0.5%, Typ @ 25°C (NCP431B/NCP432B)
|
• Low Dynamic Output Impedance, 0.22 Typical
|
• Sink Current Capability of 40 A to 100 mA
|
• Equivalent Full−Range Temperature Coefficient of 50 ppm/°C Typical
|
• Temperature Compensated for Operation over Full Rated Operating Temperature Range
|
• SC Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
|
• These are Pb−Free Devices
|
|
| CATALOG |
NCP432BVSNT1G COUNTRY OF ORIGIN
|
NCP432BVSNT1G PARAMETRIC INFO
|
NCP432BVSNT1G PACKAGE INFO
|
NCP432BVSNT1G MANUFACTURING INFO
|
NCP432BVSNT1G PACKAGING INFO
|
NCP432BVSNT1G ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Topology |
Shunt |
| Reference Type |
Adjustable |
| Output Voltage (V) |
2.5 to 36 |
| Initial Accuracy |
0.5% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Input Voltage (V) |
37 |
| Maximum Output Current (mA) |
100 |
| Maximum Temperature Coefficient |
50ppm/°C(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.94 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.4 |
| Package Overall Height (mm) |
1 |
| Seated Plane Height (mm) |
1 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

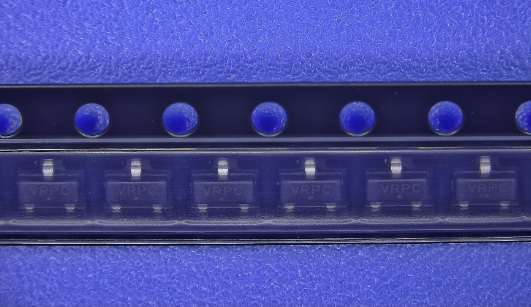

PACKAGING INFO
|
| Packaging Suffix |
T1 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
