| • Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V
Supplies |
| • Precision Monitoring Voltages from 1.2 V to 4.9 V Available
in 100 mV Steps |
| • Four Guaranteed Minimum Power−On Reset Pulse Width Available
(1 ms, 20 ms, 100 ms, and 140 ms) |
| • RESET Output Guaranteed to VCC = 1.0 V |
| • Low Supply Current |
| • VCC Transient Immunity |
| • No External Components |
| • Wide Operating Temperature: −40°C to 105°C |
| • These Devices are Pb−Free and are RoHS Compliant |
|
| CATALOG |
| NCP803SN263T1G COUNTRY OF ORIGIN |
| NCP803SN263T1G LIFECYCLE |
| NCP803SN263T1G PARAMETRIC INFO |
| NCP803SN263T1G PACKAGE INFO |
| NCP803SN263T1G MANUFACTURING INFO |
| NCP803SN263T1G PACKAGING INFO |
| NCP803SN263T1G ECAD MODELS |
| NCP803SN263T1G APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| LIFECYCLE |
LTB
Dec 30,2023 |
|
| PARAMETRIC INFO |
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
No |
| Watchdog Timer |
No |
| Number of Supervisors |
1 |
| Typical Reset Threshold Voltage (V) |
2.63 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Reset Active Time (ms) |
460 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Reset Threshold Voltage (V) |
2.59 |
| Maximum Reset Threshold Voltage (V) |
2.66 |
| Monitored Voltage (V) |
1.2 to 4.9 |
| Maximum Supply Current (uA) |
0.8(Typ) |
| Minimum Operating Supply Voltage (V) |
1.2 |
| Type |
Voltage Monitor |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.94 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.4 |
| Package Overall Height (mm) |
1 |
| Seated Plane Height (mm) |
1 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuFeAgZn |
|
| |

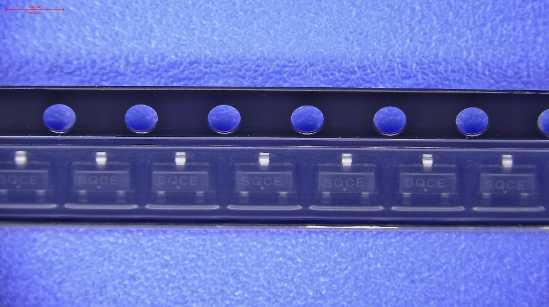

| PACKAGING INFO |
| Packaging Suffix |
T1 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
| |

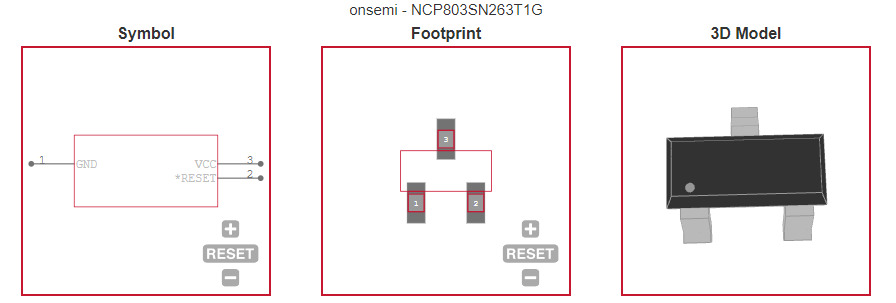

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Computers |
| • Embedded Systems |
| • Battery Powered Equipment |
| • Critical Microprocessor Power Supply Monitoring |
|
