• Output Voltage Options: 3.3 V, 5.0 V
|
• Output Voltage Accuracy: ±2.0%
|
• Output Current: up to 150 mA
|
• Low Quiescent Current (typ. 40 A @ 100 A)
|
• Low Dropout Voltage (typ. 250 mV @ 100 mA)
|
| • Fault Protection
♦ +45 V Peak Transient Voltage
♦ −42 V Reverse Voltage
♦ Short Circuit
♦ Thermal Overload
|
| • NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable |
| • These are Pb−Free Devices |
|
| CATALOG |
NCV4266-2CST50T3G COUNTRY OF ORIGIN
|
NCV4266-2CST50T3G PARAMETRIC INFO
|
NCV4266-2CST50T3G PACKAGE INFO
|
NCV4266-2CST50T3G MANUFACTURING INFO
|
NCV4266-2CST50T3G PACKAGING INFO
|
NCV4266-2CST50T3G ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
109°C/W |
| Polarity |
Positive |
| Special Features |
Over Current Protection|Over Temperature Protection |
| Load Regulation |
90mV |
| Line Regulation |
30mV |
| Maximum Quiescent Current (mA) |
0.07 |
| Maximum Dropout Voltage @ Current (V) |
0.5@100mA |
| Minimum Input Voltage (V) |
-42 |
| Maximum Input Voltage (V) |
45 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
0.04 |
| Typical Dropout Voltage @ Current (V) |
0.25@100mA |
| Accuracy (%) |
±2 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-50 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-223 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.3 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
3.5 |
| Package Height (mm) |
1.57 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
1.63 |
| Seated Plane Height (mm) |
1.63 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-261AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Terminal Base Material |
CuFeAgZn |
|
|
PACKAGING INFO
|
| Packaging |

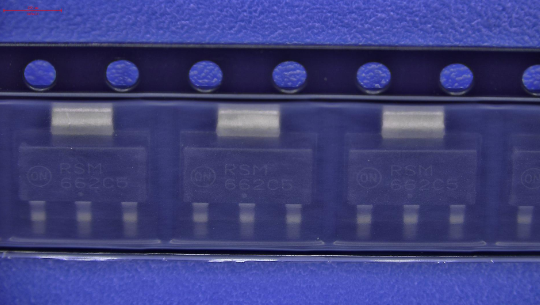

Tape and Reel |
| Quantity Of Packaging |
4000 |
| Packaging Document |
Link to Datasheet |
|
|

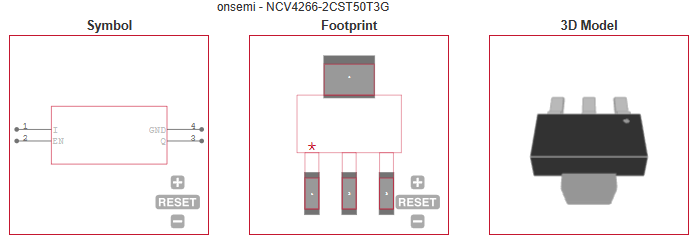

ECAD MODELS
|
|
| |
| |
