• 3.3 V, 5.0 V, ±2.0% Output Options
|
• Low 125 A Quiescent Current at 1 mA load current
|
• 400 mA Output Current Capability
|
| • Fault Protection
|
| • +60 V Peak Transient Voltage with Respect to GND−42 V Reverse Voltage Short Circuit Thermal Overload |
| • Very Low Dropout Voltage |
| • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable |
| • These are Pb−Free Devices |
|
| CATALOG |
| NCV4274CST50T3G COUNTRY OF ORIGIN |
NCV4274CST50T3G PARAMETRIC INFO
|
NCV4274CST50T3G PACKAGE INFO
|
NCV4274CST50T3G MANUFACTURING INFO
|
NCV4274CST50T3G PACKAGING INFO
|
NCV4274CST50T3G EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.4 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to ambient |
87°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Load Regulation |
20mV |
| Line Regulation |
25mV |
| Maximum Quiescent Current (mA) |
0.25 |
| Maximum Dropout Voltage @ Current (V) |
0.5@250mA |
| Minimum Input Voltage (V) |
5.5 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
0.125 |
| Typical Dropout Voltage @ Current (V) |
0.25@250mA |
| Accuracy (%) |
±2 |
| Supplier Temperature Rating |
car |
| Minimum Storage Temperature (°C) |
-50 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-223 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.3 |
| Package length (mm) |
6.5 |
| Package width (mm) |
3.5 |
| Package height (mm) |
1.57 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
1.63 |
| Mounting surface height (mm) |
1.63 |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
TO-261AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Matte Sn annealed |
| Terminal Base Material |
CuFeAgZn |
|
|

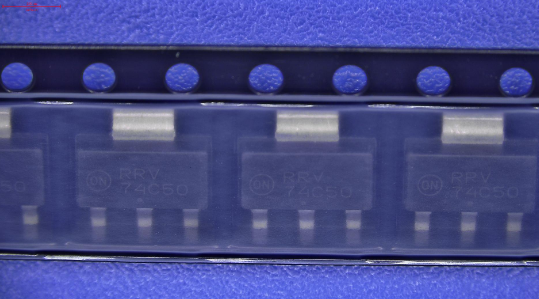

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
4000 |
| packaging type file |
Link to datasheet |
|
|

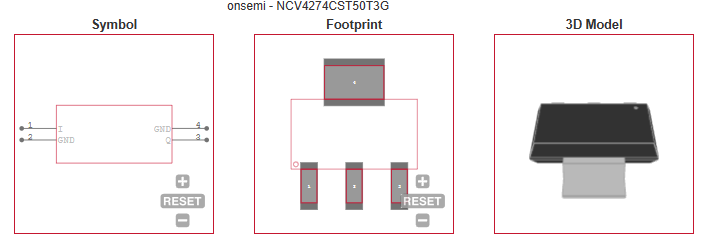

ECAD MODELS
|
|
| |
