| • Fully Compatible with J2411 Single Wire CAN Specification |
| • 60 A (max) Sleep Mode Current |
| • Operating Voltage Range 5.0 to 27 V |
| • Up to 100 kbps High−Speed Transmission Mode |
| • Up to 40 kbps Bus Speed |
| • Selective BUS Wake−Up |
| • Logic Inputs Compatible with 3.3 V and 5 V Supply Systems |
| • Control Pin for External Voltage Regulators (14 Pin Package Only) |
| • Standby to Sleep Mode Timeout |
| • Low RFI Due to Output Wave Shaping |
| • Fully Integrated Receiver Filter |
| • Bus Terminals Short−Circuit and Transient Proof |
| • Loss of Ground Protection |
| • Protection Against Load Dump, Jump Start |
| • Thermal Overload and Short Circuit Protection |
| • ESD Protection of 4.0 kV on CANH Pin (2.0 kV on Any Other Pin) |
| • Undervoltage Lock Out |
| • Bus Dominant Timeout Feature |
| • Internally Fused Leads in SO−14 Package |
| • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable |
| • These Devices are Pb−Free and are RoHS Compliant |
| |
| CATALOG |
| NCV7356D1R2G COUNTRY OF ORIGIN |
NCV7356D1R2G PARAMETRIC INFO
|
NCV7356D1R2G PACKAGE INFO
|
NCV7356D1R2G MANUFACTURING INFO
|
NCV7356D1R2G PACKAGING INFO
|
NCV7356D1R2G EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum Data Rate |
100Kbps |
| Standard Supported |
CAN 2.0 |
| Number of Transceivers |
1 |
| Power Down Mode |
Shutdown|Sleep|Standby |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
| Typical Operating Supply Voltage (V) |
9|12|15|18|24 |
| Minimum Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
27 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 to 6 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuFeAgZn |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R2 |

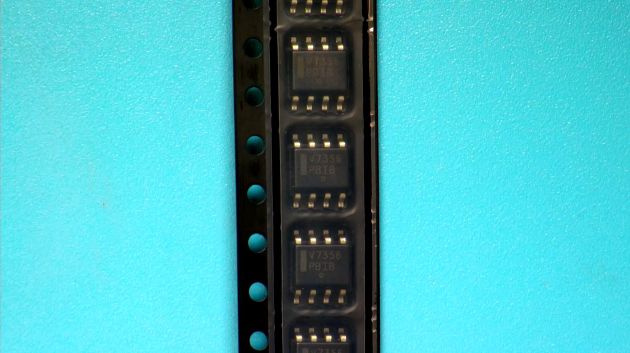

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|

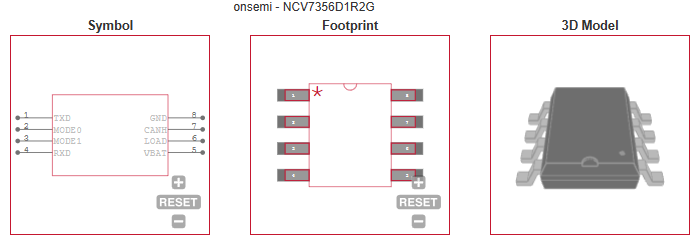

ECAD MODELS
|
|
