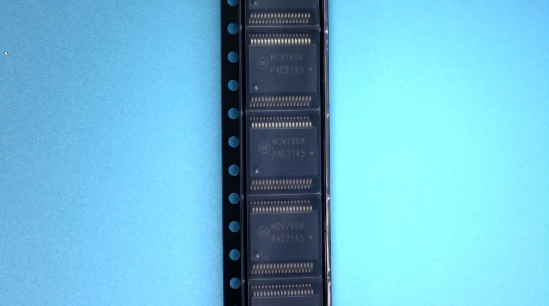

NCV7608DQR2G onsemi IC DVR LO/HI SIDE 8CH

label:
2023/11/30 412


• Eight Independent Configurable Drivers
• RDS(on) = 1.2  (typ @25°C)
• SPI Interface for Data Communication
   ♦ 16 Bit Frame Length, Daisy Chain Compatible
   ♦ 3.3 V/5 V Compatible
   ♦ Frame Detection
• PWM Inputs for 4 Outputs
• Power Up Without Open Circuit Detection Active (for LED Applications)
• Ultra−low Standby Current
• Over Current Protection
   ♦ Characterized to AEC Q10X−12−REV A
• High−Side and Low−Side Flyback Protection
• Fault Reporting
• Undervoltage Lockout (VS and VCC)
• Overvoltage Shutdown (VS)
• Supports LED Loads
• Supports Cold Cranking Operation Down to 3 V
• Overtemperature Protection
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices


CATALOG
NCV7608DQR2G COUNTRY OF ORIGIN
NCV7608DQR2G LIFECYCLE
NCV7608DQR2G PARAMETRIC INFO
NCV7608DQR2G PACKAGE INFO
NCV7608DQR2G MANUFACTURING INFO
NCV7608DQR2G PACKAGING INFO
NCV7608DQR2G ECAD MODELS
NCV7608DQR2G FUNCYIONAL BLOCK DIAGRAM
NCV7608DQR2G APPLICATIONS


COUNTRY OF ORIGIN
Philippines


LIFECYCLE
Obsolete
Apr 15,2021


PARAMETRIC INFO
Type Motor Driver
Maximum Operating Current (mA) 12
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Automotive
Minimum Operating Supply Voltage (V) 5.5
Operating Supply Voltage (V) 5.5 to 28
Maximum Operating Supply Voltage (V) 28
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Output Configuration H-Bridge
Control Interface PWM
Maximum Output Current (A) 0.35
Motor Type DC Motor

PACKAGE INFO
Supplier Package SSOP EP
Basic Package Type Lead-Frame SMT
Pin Count 36
Lead Shape Gull-wing
PCB 36
Tab N/R
Pin Pitch (mm) 0.5
Package Length (mm) 10.3
Package Width (mm) 7.5
Package Height (mm) 2.6(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 10.3
Package Overall Width (mm) 10.3
Package Overall Height (mm) 2.65(Max)
Seated Plane Height (mm) 2.65(Max)
Mounting Surface Mount
Package Material Plastic
Package Description Shrink Small Outline Package, Exposed Pad
Package Family Name SO
Package Outline Link to Datasheet

MANUFACTURING INFO
MSL 2
Maximum Reflow Temperature (°C) 250
Reflow Solder Time (Sec) 20 to 40
Number of Reflow Cycle 3
Standard J-STD-020C
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Pd over Ni
Terminal Base Material Cu Alloy

PACKAGING INFO
Packaging Tape and Reel
Quantity Of Packaging 1500

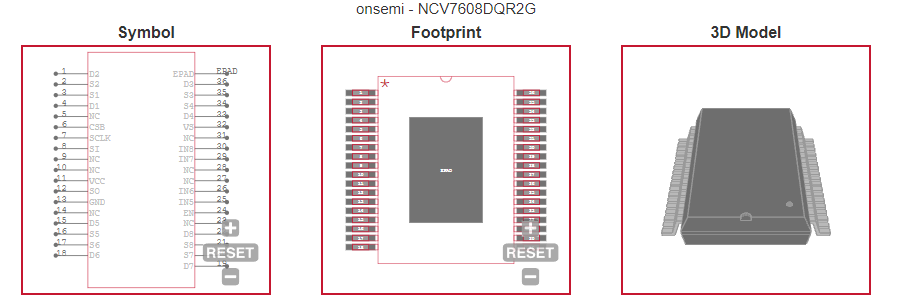

ECAD MODELS

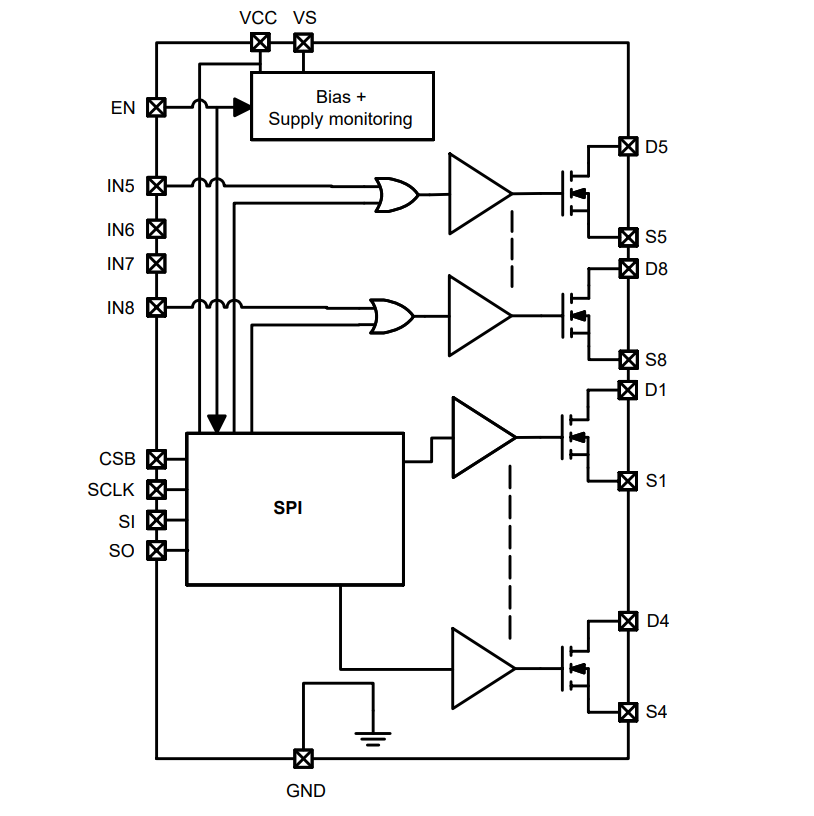

FUNCYIONAL BLOCK DIAGRAM


APPLICATIONS
• Automotive
• Industrial
• Relay Drive
• DC Motor Drive
• LED Drive
