| • Short Circuit Protection |
| • Thermal Shutdown with Automatic Restart |
| • Over Voltage Protection |
| • Integrated Clamp for Inductive Switching |
| • ESD Protection |
| • dV/dt Robustness |
| • Analog Drive Capability (Logic Level Input) |
| • NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable |
| • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant |
|
| CATALOG |
| NCV8403ASTT1G COUNTRY OF ORIGIN |
| NCV8403ASTT1G PARAMETRIC INFO |

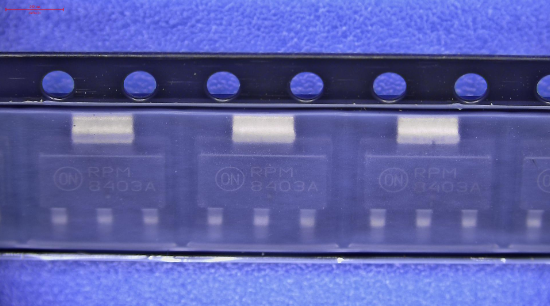

| NCV8403ASTT1G PACKAGE INFO |
| NCV8403ASTT1G MANUFACTURING INFO |
| NCV8403ASTT1G PACKAGING INFO |
| NCV8403ASTT1G ECAD MODELS |
| NCV8403ASTT1G APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Israel |
| Malaysia |
|
| PARAMETRIC INFO |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
22 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
105 |
| Maximum Power Dissipation (mW) |
2500 |
| Process Technology |
TMOS STD |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
| PACKAGE INFO |
| Supplier Package |
SOT-223 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.3 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
3.5 |
| Package Height (mm) |
1.57 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
1.63 |
| Seated Plane Height (mm) |
1.63 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-261AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| PACKAGING INFO |
| Packaging Suffix |
T1 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|

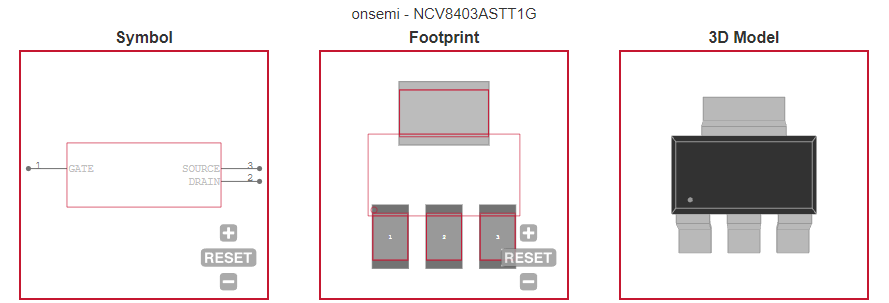

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Switch a Variety of Resistive, Inductive and Capacitive Loads |
| • Can Replace Electromechanical Relays and Discrete Circuits |
| • Automotive / Industrial |
|
