NFM21PC475B1A3D Country of Origin
|
NFM21PC475B1A3D Lifecycle
|
NFM21PC475B1A3D Parametric Info
|
NFM21PC475B1A3D Package Info
|
NFM21PC475B1A3D Manufacturing Info
|
NFM21PC475B1A3D Packaging Info
|
NFM21PC475B1A3D ECAD Models
|
|
COUNTRY OF ORIGIN
|
United Kingdom of Great Britain and Northern Ireland
|
Malaysia
|
Japan
|
|
LIFECYCLE
|
LTB
Sep 30,2024
|
|
PARAMETRIC INFO
|
| Capacitance Value |
4.7uF |
| Voltage |
10VDC |
| Tolerance |
20% |
| Ripple Current (mA) |
6000 |
| Maximum Operating Temperature (°C) |
85 |
| Construction |
Flat |
| Microwave Application |
No |
| Minimum Insulation Resistance (Ohm) |
100M |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Terminal Width (mm) |
1.35 |
| DC Rated Voltage (VDC) |
10 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Storage Temperature (°C) |
40 |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
0805 |
| Mounting |
Surface Mount |
| Termination Style |
N/R |
| Product Length (mm) |
2 |
| Product Depth (mm) |
1.25 |
| Product Height (mm) |
0.85 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.012 |
| Length Tolerance (mm) |
±0.2 |
| Depth Tolerance (mm) |
±0.1 |
| Height Tolerance (mm) |
±0.1 |
| Diameter Tolerance (mm) |
N/R |
| Maximum Product Length (mm) |
2.2 |
| Maximum Product Depth (mm) |
1.35 |
| Maximum Product Height (mm) |
0.95 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
270 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/A |
|
|

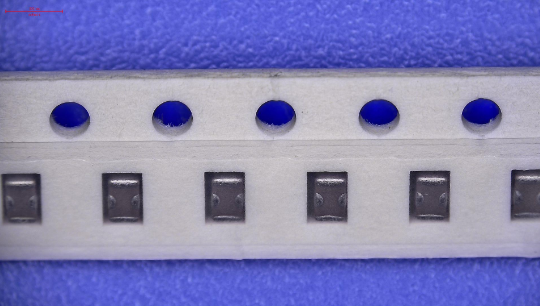

PACKAGING INFO
|
| Packaging Suffix |
D |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|

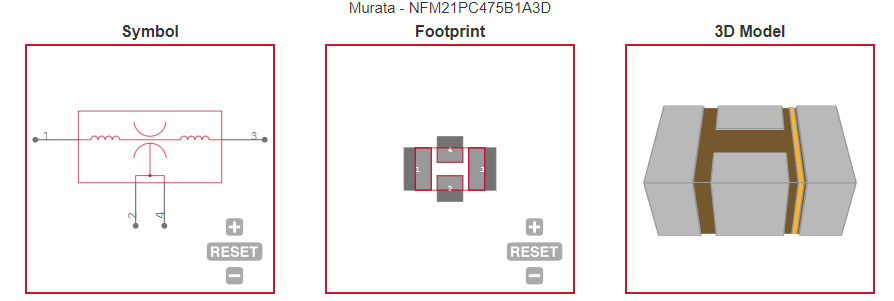

ECAD MODELS
|
|
|
|
