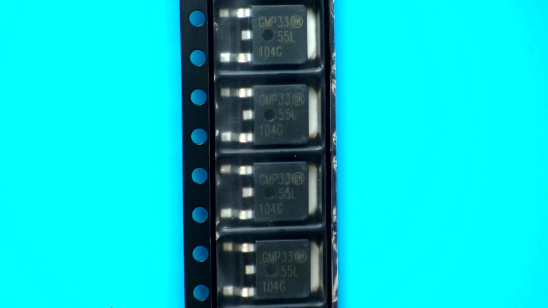

NTD3055L104T4G onsemi MOSFET N-CH 60V 12A DPAK

label:
2023/10/16 376


• Lower RDS(on)
• Lower VDS(on)
• Tighter VSD Specification
• Lower Diode Reverse Recovery Time
• Lower Reverse Recovery Stored Charge
• NTDV and STDV Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant


CATALOG
NTD3055L104T4G COUNTRY OF ORIGIN
NTD3055L104T4G PARAMETRIC INFO
NTD3055L104T4G PACKAGE INFO  
NTD3055L104T4G MANUFACTURING INFO
NTD3055L104T4G PACKAGING INFO
NTD3055L104T4G ECAD MODELS
NTD3055L104T4G  APPLICATIONS


COUNTRY OF ORIGIN
China
Czechia
Japan
Malaysia
United States of America
Viet Nam


PARAMETRIC INFO
Channel Type N
Channel Mode Enhancement
Configuration Single
Maximum Drain Source Voltage (V) 60
Maximum Continuous Drain Current (A) 12
Maximum Gate Source Voltage (V) ±15
Maximum Drain Source Resistance (mOhm) 104@5V
Typical Gate Charge @ Vgs (nC) 7.4@5V
Operating Junction Temperature (°C) -55 to 175
Maximum Power Dissipation (mW) 48000
Minimum Gate Threshold Voltage (V) 1
Category Power MOSFET
Typical Output Capacitance (pF) 105
Maximum Junction Ambient Thermal Resistance 100°C/W
Maximum Junction Case Thermal Resistance 3.13°C/W
Maximum Positive Gate Source Voltage (V) 15
Typical Input Capacitance @ Vds (pF) 316@25V
Typical Gate Threshold Voltage (V) 1.6
Typical Reverse Transfer Capacitance @ Vds (pF) 35@25V
Typical Reverse Recovery Charge (nC) 40
Typical Diode Forward Voltage (V) 0.95
Maximum Diode Forward Voltage (V) 1.2
Typical Reverse Recovery Time (ns) 35
Typical Forward Transconductance (S) 9.1
Maximum Pulsed Drain Current @ TC=25°C (A) 45
Typical Turn-On Delay Time (ns) 9.2
Typical Turn-Off Delay Time (ns) 19
Typical Fall Time (ns) 40.5
Typical Rise Time (ns) 104
Maximum Gate Source Leakage Current (nA) 100
Maximum Gate Threshold Voltage (V) 2
Maximum IDSS (uA) 1
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 175
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175


PACKAGE INFO
Supplier Package DPAK
Basic Package Type Lead-Frame SMT
Pin Count 3
Lead Shape Gull-wing
PCB 2
Tab Tab
Pin Pitch (mm) 2.29
Package Length (mm) 6.73(Max)
Package Width (mm) 6.22(Max)
Package Height (mm) 2.38(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 6.73(Max)
Package Overall Width (mm) 10.41(Max)
Package Overall Height (mm) 2.51(Max)
Seated Plane Height (mm) 2.51(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Deca Watt Package
Package Family Name TO-252
Jedec TO-252AA
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Suffix T4
Packaging Tape and Reel
Quantity Of Packaging 2500
Reel Diameter (in) 13
Reel Width (mm) 16.4(Min)
Tape Pitch (mm) 8
Tape Width (mm) 16
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Tab Opposing Sprocket Hole
Packaging Document Link to Datasheet
Tape Type Embossed

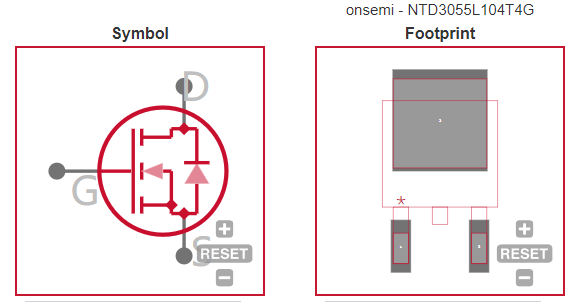

ECAD MODELS


APPLICATIONS
• Power Supplies
• Converters
• Power Motor Controls
• Bridge Circuits
