| • iLGA inspectable Land Grid Array |
| • 4.5-14Vdc input voltage range |
| • Programmable output voltage from 0.591-5.5Vdc |
| • Drives up to 200 μF ceramic capacitive loads |
| • High power conversion effi ciency at 93% |
| • Outstanding thermal derating performance |
| • Short circuit and over current protection |
| • On/Off control and Power Good signal |
| • Optional Sequence/Tracking operation
(OKL2-T/3-W12 models) |
| • Certifi ed to UL/EN/IEC 60950-1 safety, 2nd Edition |
| • RoHS-6 hazardous substance compliance |
|
| CATALOG |
| OKL-T/3-W12N-C COUNTRY OF ORIGIN |
| OKL-T/3-W12N-C PARAMETRIC INFO |
| OKL-T/3-W12N-C PACKAGE INFO |
| OKL-T/3-W12N-C MANUFACTURING INFO |
| OKL-T/3-W12N-C PACKAGING INFO |
|
| COUNTRY OF ORIGIN |
| Japan |
| Thailand |
| China |
| United States of America |
Taiwan (Province of China)
|
|
| PARAMETRIC INFO |
| Isolation |
Non-Isolated |
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.591 to 5.5 |
| Maximum Output Power (W) |
15 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
4.5 |
| Typical Input Voltage (V) |
12 |
| Maximum Input Voltage (V) |
14 |
| Output Type |
Adjustable |
| Efficiency (%) |
93(Typ) |
| Load Regulation |
0.25% |
| Line Regulation |
0.25% |
| Switching Frequency (kHz) |
600 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| On/Off Logic |
Negative |
|
| |
| PACKAGE INFO |
| Supplier Package |
ILGA |
| Pin Count |
11 |
| PCB |
11 |
| Tab |
N/R |
| Package Length (mm) |
12.19 |
| Package Width (mm) |
12.19 |
| Package Height (mm) |
N/A |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
6.2(Max) |
| Mounting |
Surface Mount |
| Package Family Name |
LGA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
45 to 75 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |

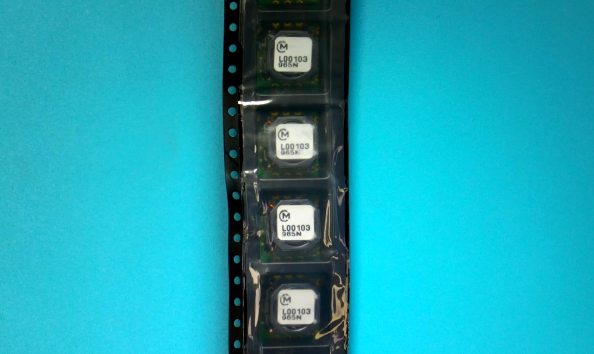

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |
|
