• Focused and non-focused optical light pattern
|
• Enhanced temperature range
|

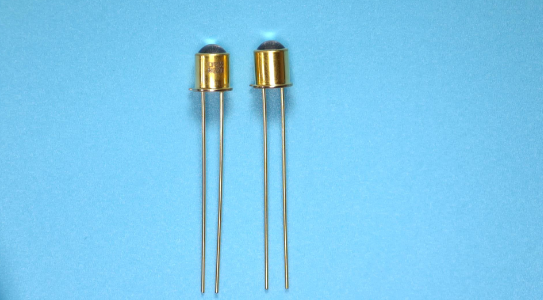

• TO-46 hermetically sealed package
|
• Mechanically and spectrally matched to other Optek devices
|
• Choice of power ranges
|
• Choice of narrow or wide irradiance pattern
|
|
| CATALOG |
OP233 COUNTRY OF ORIGIN
|
OP233 PARAMETRIC INFO
|
OP233 PACKAGE INFO
|
OP233 MANUFACTURING INFO
|
OP233 PACKAGING INFO
|
OP233 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Mexico
|
|
PARAMETRIC INFO
|
| Viewing Angle (°) |
18 |
| Mounting Orientation |
Top Mount |
| Lens Shape Type |
Circular |
| High Brightness |
No |
| Peak Wavelength (nm) |
890 |
| Maximum Forward Voltage (V) |
2 |
| Maximum Forward Current (mA) |
100 |
| LED Material |
GaAlAs |
| Maximum Power Dissipation (mW) |
200 |
| Minimum Operating Temperature (°C) |
-65 |
| Reverse Voltage (V) |
2 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Reverse Current (uA) |
100 |
| Temperature Flag |
Opr |
| High Power |
Yes |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Test Current (mA) |
10 |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-46 |
| Basic Package Type |
Through Hole |
| Pin Count |
2 |
| Lead Shape |
Through Hole |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
N/R |
| Package Width (mm) |
N/R |
| Package Height (mm) |
5.59 |
| Package Diameter (mm) |
6.35 |
| Seated Plane Height (mm) |
N/A |
| Mounting |
Through Hole |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Bag |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Non-contact reflective object sensor
|
• Assembly line automation
|
• Machine automation
|
• Machine safety
|
• End of travel sensor
|
• Door sensor
|
|
