| • Superior Sound Quality |
| • Ultra Low Distortion: 0.00008% |
| • Low Noise: 8 nV/√Hz |
| • True FET-Input: IB = 5p |
• High Speed:
– Slew Rate: 20 V/µs
– Bandwidth: 8 MHz |
| • High Open-Loop Gain: 120 dB (600 Ω)
|
| • Wide Supply Range: ±2.5 V to ±18 V |
| • Single, Dual, and Quad Versions |
|
| CATALOG |
| OPA2134UA/2K5 COUNTRY OF ORIGIN |
| OPA2134UA/2K5 PARAMETRIC INFO |
| OPA2134UA/2K5 PACKAGE INFO |
| OPA2134UA/2K5 MANUFACTURING INFO |
| OPA2134UA/2K5 PACKAGING INFO |
| OPA2134UA/2K5 ECAD MODELS |
| OPA2134UA/2K5 FUNCTIONAL BLOCK DIAGRAM |
| OPA2134UA/2K5 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| Malaysia |
| China |
| Thailand |
| Philippines |
|
| PARAMETRIC INFO |
| Amplifier Type |
Class-AB |
| Function |
Speaker |
| Input Signal Type |
Differential |
| Output Signal Type |
Single |
| Output Type |
2-Channel Stereo |
| Power Supply Type |
Single|Dual |
| Minimum Single Supply Voltage (V) |
5 |
| Typical Single Supply Voltage (V) |
9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±2.5 |
| Typical Dual Supply Voltage (V) |
±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Input Offset Voltage (mV) |
2@±15V |
| Maximum Load Resistance (Ohm) |
2000 |
| Typical Gain Bandwidth Product (MHz) |
8 |
| Maximum Input Bias Current (uA) |
0.0001@±15V |
| Typical PSRR (dB) |
106 |
| Typical Quiescent Current (mA) |
4@±15V |
| Maximum Quiescent Current (mA) |
5@±15V |
| Minimum CMRR (dB) |
86 |
| Typical Voltage Gain (dB) |
120 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
|
| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

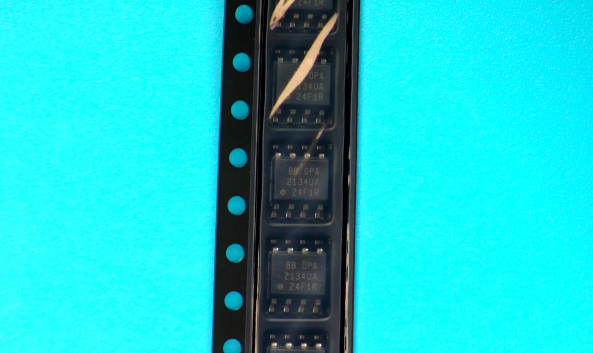

| PACKAGING INFO |
| Packaging Suffix |
2K5 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

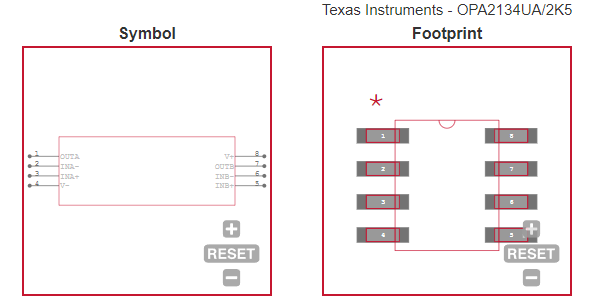

| ECAD MODELS |
 |
|

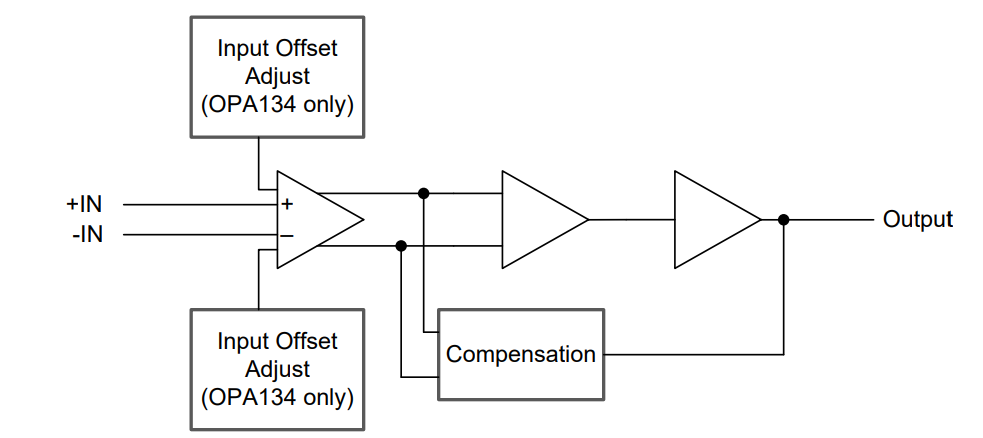

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Professional Audio and Music |
| • Line Drivers
|
| • Line Receivers |
| • Multimedia Audio |
| • Active Filters |
| • Preamplifiers |
| • Integrators |
| • Crossover Networks |
| |
| |
