• LOW NOISE
|
• ZERØ-DRIFT SERIES
|
• QUIESCENT CURRENT: 125μA
|
| • GAIN BANDWIDTH: 900kHz
|
| • RAIL-TO-RAIL INPUT/OUTPUT |
| • EMI FILTERING |
| • SUPPLY VOLTAGE: 2.2V to 5.5V |
| • microSIZE PACKAGES: SC70 and SOT23 |
|
| CATALOG |
| OPA378AIDCKR COUNTRY OF ORIGIN |
OPA378AIDCKR PARAMETRIC INFO
|
OPA378AIDCKR PACKAGE INFO
|
OPA378AIDCKR MANUFACTURING INFO
|
OPA378AIDCKR PACKAGING INFO
|
OPA378AIDCKR EACD MODELS
|
| OPA378AIDCKR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| China |
|
PARAMETRIC INFO
|
| Manufacturer Type |
Low Noise Amplifier |
| type |
Low Noise Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
2.2 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
116.48(Typ) |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Typical Gain Bandwidth Product (MHz) |
0.9 |
| Maximum Input Offset Voltage (mV) |
0.05@5.5V |
| Maximum Input Offset Current (uA) |
0.0011@5.5V |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Input Bias Current (uA) |
0.00055@5.5V |
| Minimum CMRR (dB) |
94 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
90 to 95 |
| Typical Voltage Gain (dB) |
134 |
| Typical Slew Rate (V/us) |
0.4@5.5V |
| Typical Settling Time (ns) |
9000 |
| Typical Input Noise Voltage Density (nV/rtHz) |
20@5.5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.2@5.5V |
| Shut Down Support |
no |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Power Supply Type |
Single |
|
|
PACKAGE INFO
|
| Supplier packaging |
SC-70 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
5 |
| Pin shape |
Gull-wing |
| PCB |
5 |
| ears |
N/R |
| Pin spacing (mm) |
0.65 |
| Package length (mm) |
2.15(Max) |
| Package width (mm) |
1.4(Max) |
| Package height (mm) |
0.9 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.15(Max) |
| Package Overall Width (mm) |
2.4(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Mounting surface height (mm) |
1.1(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-203 |
| Package outline |
Link to datasheet |
| Maximum PACKAGE_DIMENSION_H |
1 |
| Minimum PACKAGE_DIMENSION_H |
not applicable |
| Maximum PACKAGE_DIMENSION_L |
2.15 |
| Minimum PACKAGE_DIMENSION_L |
1.85 |
| Maximum PACKAGE_DIMENSION_W |
1.4 |
| Minimum PACKAGE_DIMENSION_W |
1.1 |
| Maximum Diameter |
N/R |
| Minimum Diameter |
N/R |
| Maximum Seated_Plane_Height |
1.1 |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
4 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
not applicable |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |

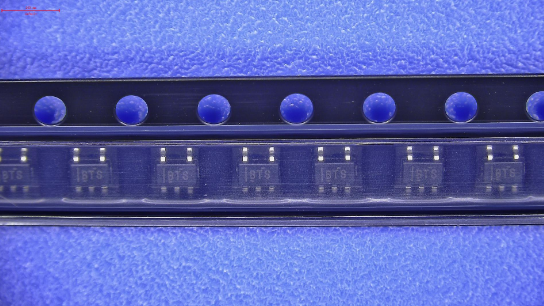

| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4|9 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| packaging type file |
Link to datasheet |
|
|

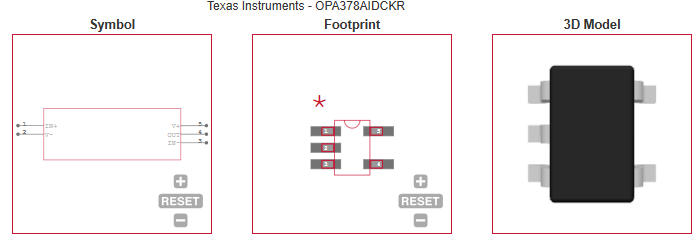

ECAD MODELS
|
|
|
APPLICATIONS
|
• PORTABLE MEDICAL DEVICES– GLUCOSE METERS– OXYGEN METERING– HEART RATE MONITORS
|
| • WEIGH SCALES |
| • BATTERY-POWERED INSTRUMENTS |
| • THERMOPILE MODULES |
| • HANDHELD TEST EQUIPMENT |
| • SENSOR SIGNAL CONDITIONING |
| |
