• High-Side Current Monitor with One, Two, Three
or Four Channels
|
• Wide Bus Voltage Range for Voltage Monitor
|
• Real Time Auto-Calibration of Offset and Gain
Errors for Voltage and Current, No User
Adjustment Required
|
• 1% Power Measurement Accuracy over a Wide
Dynamic Range
|
• On-Chip Accumulation of 28-bit Power Results for
Energy Measurement
|
• 2.7V to 5.5V Supply Operation
|
• SMBus Address – 16 Options, set with Resistor
|
• No Input Filters Required
|
• ALERT Features that can be Enabled:
- ALERT on accumulator overflow
- ALERT on Conversion Complete
|
| • 4 × 4 × 0.5 mm UQFN Package |
| • 2.225 × 2.17 mm WLCSP Package |
|
| CATALOG |
PAC1934T-I/JQ PARAMETRIC INFO
|
PAC1934T-I/JQ PACKAGE INFO
|
PAC1934T-I/JQ PACKAGING INFO
|
PAC1934T-I/JQ APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Monitor |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.585 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Supplier Temperature Grade |
Industrial |
|
|
PACKAGE INFO
|
| Supplier Package |
UQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.48 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Ultra Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|

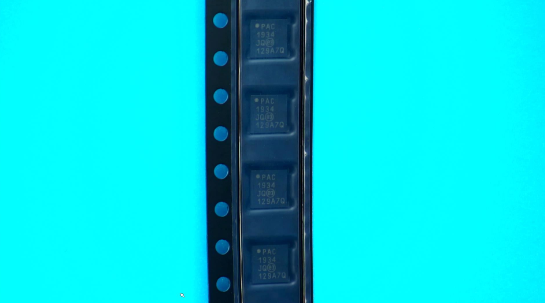

PACKAGING INFO
|
|
|
|
APPLICATIONS
|
• Embedded Computing
|
• Networking
|
• FPGA Systems
|
• Automotive
|
• Low Voltage/High Power – AI, GPU
|
• Industrial
|
• Linux® Applications
|
| • Notebook and Tablet Computing |
| • Cloud, Linux and Server Computing |
| • Optical Networking Modules |
|
