• 2.5W Output at 10% THD with a 4Ω Load and 5V Power
Supply
|
• Filterless, Low Quiescent Current and Low EMI
|
• High Efficiency up to 88%
|
| • Superior Low Noise
|
| • Short Circuit Protection |
| • Thermal Shutdown |
| • Few External Components to Save Space and Cost
|
| • MSOP-8, SO-8 and U-DFN3030-8 (Type E) Packages
Available
|
| • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) |
| • Halogen and Antimony Free. “Green” Device (Note 3) |
| • For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified
facilities), please contact us or your local Diodes
representative. |
|
| CATALOG |
| PAM8302AASCR COUNTRY OF ORIGIN |
PAM8302AASCR PARAMETRIC INFO
|
PAM8302AASCR PACKAGE INFO
|
PAM8302AASCR MANUFACTURING INFO
|
PAM8302AASCR PACKAGING INFO
|
PAM8302AASCR ECAD MODELS
|
| PAM8302AASCR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Amplifier Type |
Class-D |
| Function |
Speaker |
| Input Signal Type |
Differential |
| Output Signal Type |
Differential |
| Output Type |
1-Channel Mono |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
2.5 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Load Resistance (Ohm) |
8 |
| Typical Output Power (W) |
2.5 |
| Typical Output Power x Channels @ Load (W) |
2.5x1@4Ohm |
| Typical PSRR (dB) |
50 |
| Typical Supply Current (mA) |
4 |
| Maximum Supply Current (mA) |
8 |
| Total Harmonic Distortion Noise |
0.45%@8Ohm@0.5W|0.3%@8Ohm@0.1W |
| Typical Voltage Gain (dB) |
24 |
| Minimum Operating Temperature (°C) |
-20 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
MSOP |
| Pin Count |
8 |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3 |
| Package Width (mm) |
3.1 |
| Package Height (mm) |
0.86 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Description |
Micro Small Outline Package |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
300 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

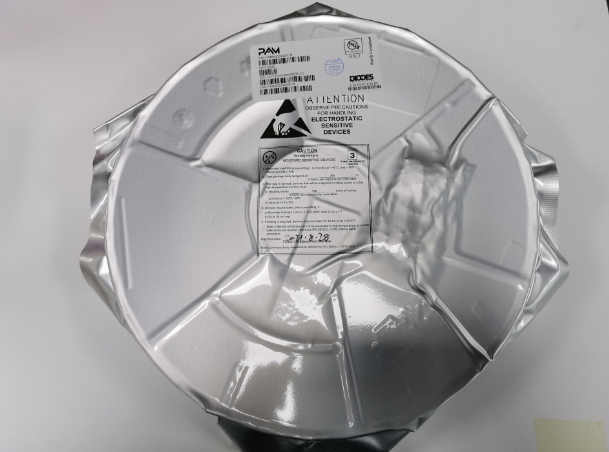

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
|
|

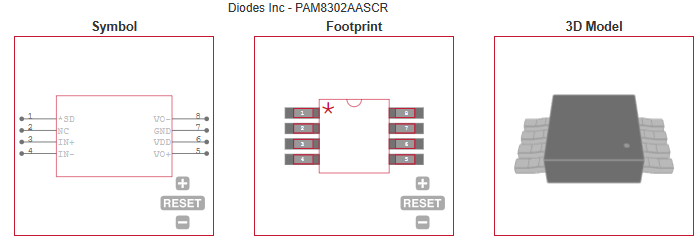

ECAD MODELS
|
|
|
APPLICATIONS
|
• PMP/MP4
|
• GPS
|
• Portable Speakers
|
| • 2-Way Radios |
| • Hands-Free Phones/Speaker Phones |
| • Cellular Phones |
| |
