• Glass Passivated Die Construction
|
• Ultra-Fast Recovery Time for High Efficiency
|
• High Maximum Junction Temperature
|
| • High Forward Surge Current Capability
|
| • For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications |
| • Lead Free Finish, RoHS Compliant (Note 1) |
| • "Green" Molding Compound (No Br, Sb) |
| • Qualified to AEC-Q101 Standards for High Reliability |
|
| CATALOG |
| PDU620-13 COUNTRY OF ORIGIN |
PDU620-13 PARAMETRIC INFO
|
PDU620-13 PACKAGE INFO
|
PDU620-13 MANUFACTURING INFO
|
PDU620-13 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| type |
Switching Diode |
| Configuration |
Single Dual Anode |
| Peak Reverse Repetitive Voltage (V) |
200 |
| Maximum DC Reverse Voltage (V) |
200 |
| Maximum Continuous Forward Current (A) |
6 |
| Speed |
Ultra Fast Recovery Rectifier |
| Peak Forward Voltage (V) |
0.975@8A |
| Peak Non-Repetitive Surge Current (A) |
150 |
| Peak Reverse Current (uA) |
5 |
| Peak Reverse Recovery Time (ns) |
25 |
| Operating Junction Temperature (°C) |
-65 to 175 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Rating |
car |
|
|
PACKAGE INFO
|
| Supplier packaging |
PowerDI 5 |
| Number of pins |
3 |
| PCB |
3 |
| ears |
ears |
| Package length (mm) |
3.97 |
| Package width (mm) |
5.37 |
| Package height (mm) |
1.1(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
13 |

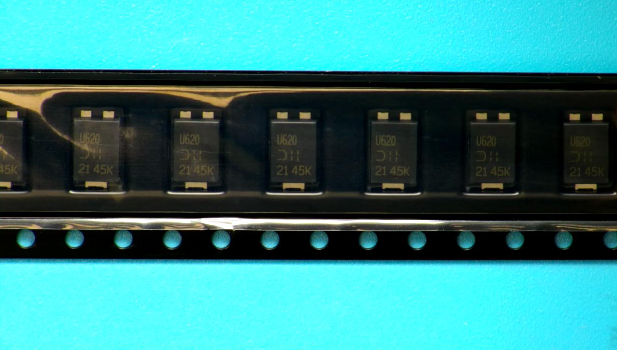

| Package |
Tape and reel packaging |
| packaging type file |
Link to datasheet |
|
|
