• Supports CDP/DCP Modes per USB Battery Charging Specification 1.2
|
• Supports Shorted Mode per Chinese Telecommunication Industry Standard YD/T1591-2009
|
• Supports Sleep-Mode Charging and Mouse/Keyboard Wake up
|
• Load Detection for Power Supply Control in S4/S5 Charging and Port Power Management in all Charge Modes
|
• Compatible with USB 2.0/3.0 Power Switch requirements
|
|
| CATALOG |
PI5USB2546HZHEX COUNTRY OF ORIGIN
|
PI5USB2546HZHEX PACKAGE INFO
|
PI5USB2546HZHEX PACKAGING INFO
|
PI5USB2546HZHEX APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|

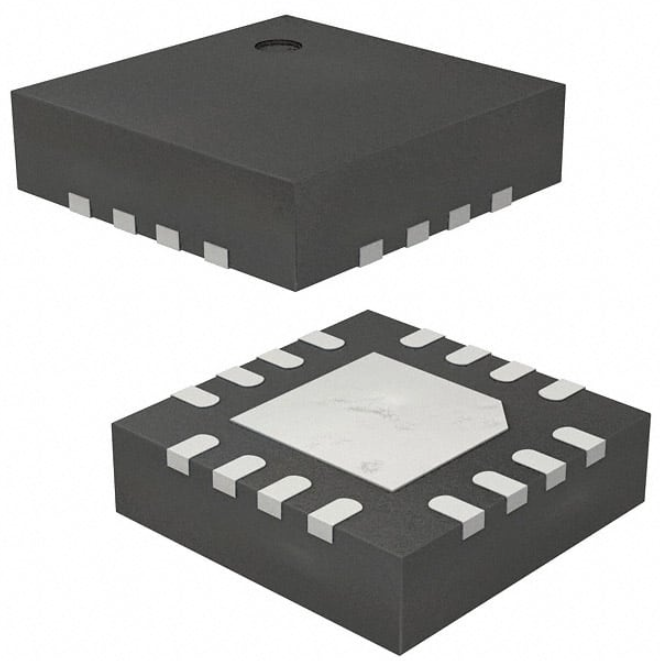

PACKAGE INFO
|
| Supplier Package |
TQFN EP |
| Pin Count |
16 |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• USB Ports (Host and Hubs)
|
• Notebook and Desktop PCs
|
• Universal Wall Charging Adapters
|
|
