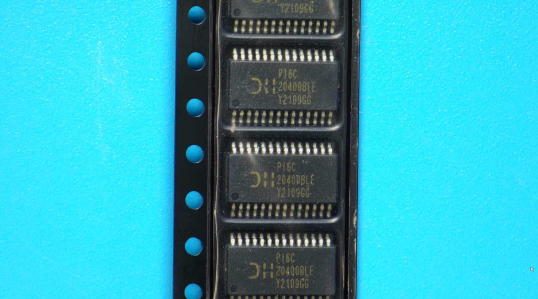

• Phase jitter filter for PCIe 3.0 application
|
• Four Pairs of Differential Clocks
|
• Low skew < 50ps
|
• Low jitter < 50ps cycle-to-cycle
|
• < 1 ps additive RMS phase jitter
|
• Output Enable for all outputs
|
• Outputs tristate control via SMBus
|
|
| CATALOG |
PI6C20400BLEX COUNTRY OF ORIGIN
|
PI6C20400BLEX PARAMETRIC INFO
|
PI6C20400BLEX PACKAGE INFO
|
PI6C20400BLEX MANUFACTURING INFO
|
PI6C20400BLEX PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Number of Outputs per Chip |
4 |
| Clock Input Frequency (MHz) |
95 to 105 |
| Maximum Output Frequency (MHz) |
100(Typ) |
| Typical Duty Cycle (%) |
50 |
| Input Logic Level |
LVTTL |
| Output Logic Level |
HCSL |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Programmability |
Yes |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Supply Voltage (V) |
3.135 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.465 |
| Number of Clock Inputs |
1 |
| Spread Spectrum |
No |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
9.7 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153AE |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
|
|
