• High performance RISC CPU
|
• Only 35 single word instructions to learn
|
• All single cycle instructions except for program branches which are two-cycle
|
• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
|
• Pinout compatible to the PIC16CXXX 28 and 40-pin devices
|
• Interrupt capability (up to 11 sources)
|
• Eight level deep hardware stack
|
• Direct, Indirect and Relative Addressing modes
|
|
| CATALOG |

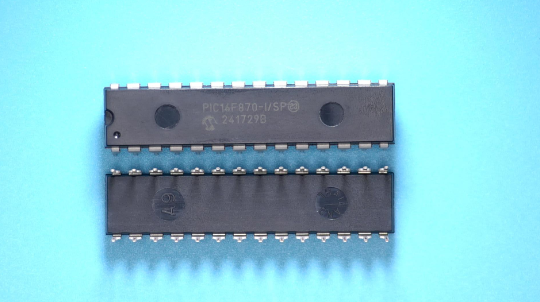

PIC16F870-I/SP COUNTRY OF ORIGIN
|
PIC16F870-I/SP PARAMETRIC INFO
|
PIC16F870-I/SP PACKAGE INFO
|
PIC16F870-I/SP MANUFACTURING INFO
|
PIC16F870-I/SP PACKAGING INFO
|
PIC16F870-I/SP ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Taiwan (Province of China)
|
Singapore
|
Thailand
|
China
|
|
PARAMETRIC INFO
|
| Family Name |
PIC16 |
| Data Bus Width (bit) |
8 |
| Device Core |
PIC |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
20 |
| Program Memory Type |
Flash |
| Program Memory Size |
3.5KB |
| RAM Size |
128B |
| Maximum CPU Frequency (MHz) |
20 |
| Number of Programmable I/Os |
22 |
| Number of Timers |
3 |
| ADC Channels |
5 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
PIC |
| Number of ADCs |
Single |
| PWM |
1 |
| Watchdog |
1 |
| Interface Type |
USART |
| Programmability |
Yes |
| SPI |
0 |
| I2C |
0 |
| I2S |
0 |
| UART |
0 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
1000 |
| Minimum Operating Supply Voltage (V) |
4 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
SPDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
28 |
| Lead Shape |
Through Hole |
| PCB |
28 |
| Tab |
N/R |
| Package Length (mm) |
34.67 |
| Package Width (mm) |
7.24 |
| Package Height (mm) |
3.43 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
DIP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
15 |
|
|

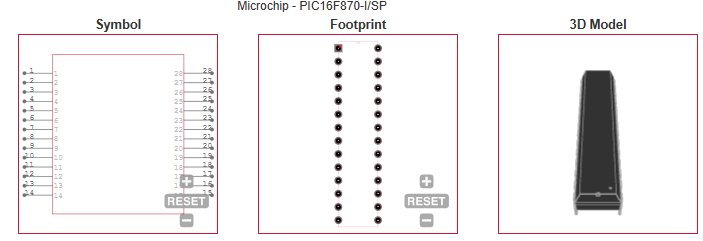

| ECAD MODELS |
 |
| |
